EdgeFocus - Quick Start Guide

1 EdgeFocus

​The EdgeFocus system is a compact IoT/Embedded server designed for edge computing, networking, and firewall applications. This guide provides step-by-step instructions to help you set up and access the system efficiently.​

The Primary components of EdgeFocus system are:

• EdgeFocus appliance

• Power cord​

1.1 Hardware Overview

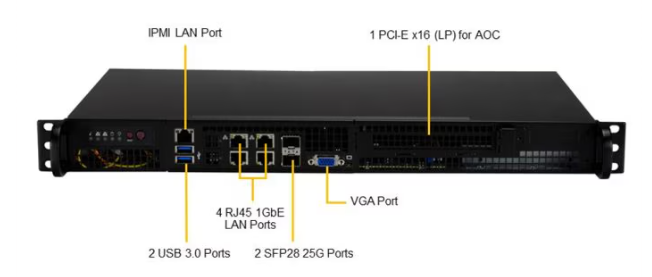

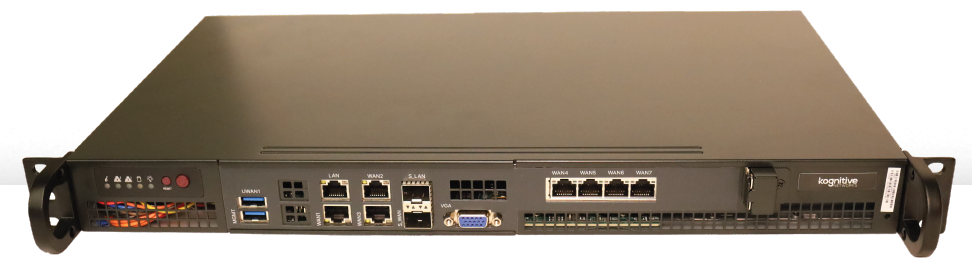

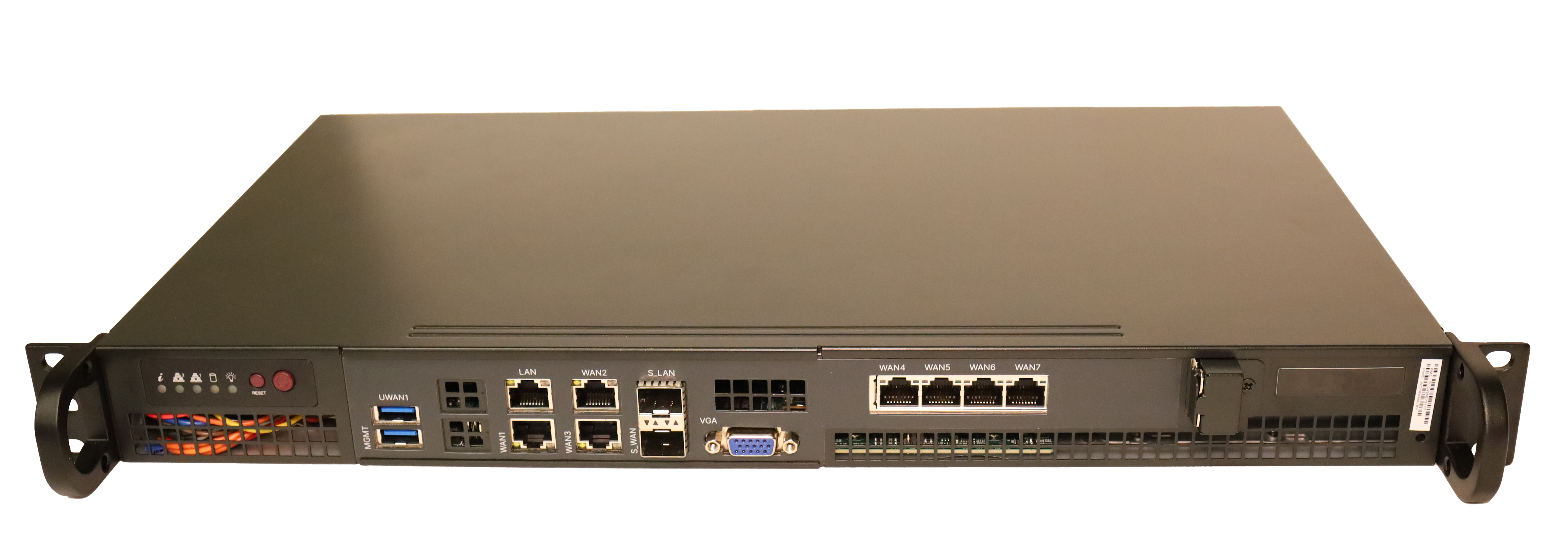

Front Panel:

• 8x 1GbE RJ45 LAN ports

• 2x 25GbE SFP28 ports

• 2x USB 3.0 ports

• 1x VGA port

• Power and system status LEDs

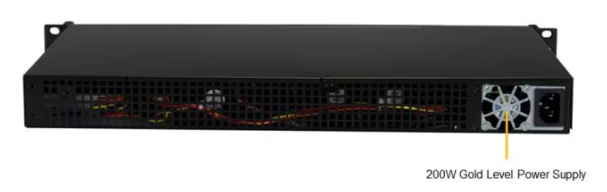

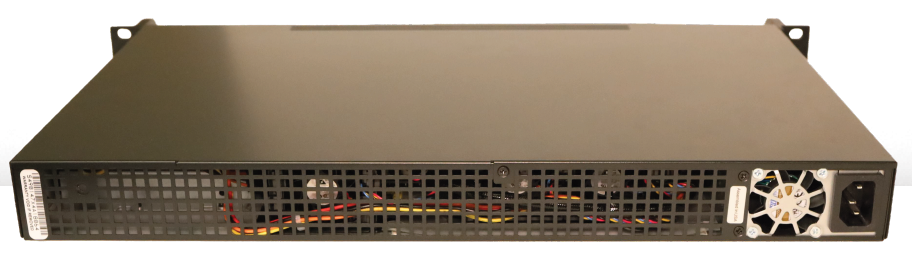

Rear Panel:

• AC Power input​

Internal Components:

• Intel Xeon D-1700 series processor​

• 4x DDR4 DIMM slots (up to 256GB ECC RDIMM)​

• M.2 slots:​

  • 1x M-Key (NVMe/SATA)​

  • 1x B-Key (SATA/USB)​

  • 1x E-Key (USB)​

• 3x 40x28mm PWM cooling fans​

1.2 Initial Setup

1.2.1 Mounting the Server

• Install the server into a standard 19" rack using the provided rackmount kit.​

• Ensure adequate ventilation around the server for optimal cooling.​

1.2.2 Connecting Power

• Connect the AC power cord to the server's power supply.​

• Plug the other end into a reliable power source or UPS.​

• Press the power button on the front panel to turn on the server.​

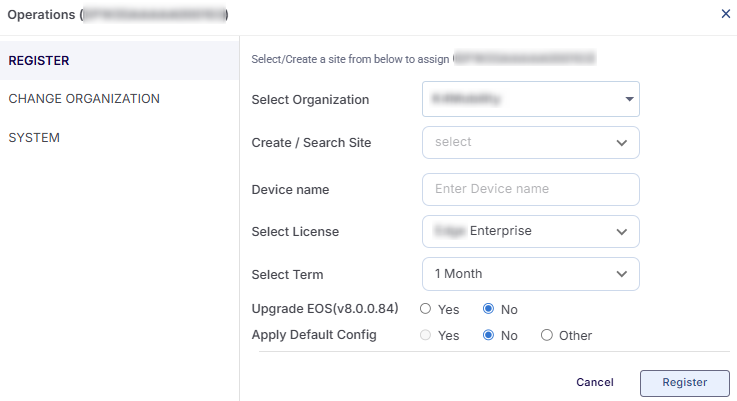

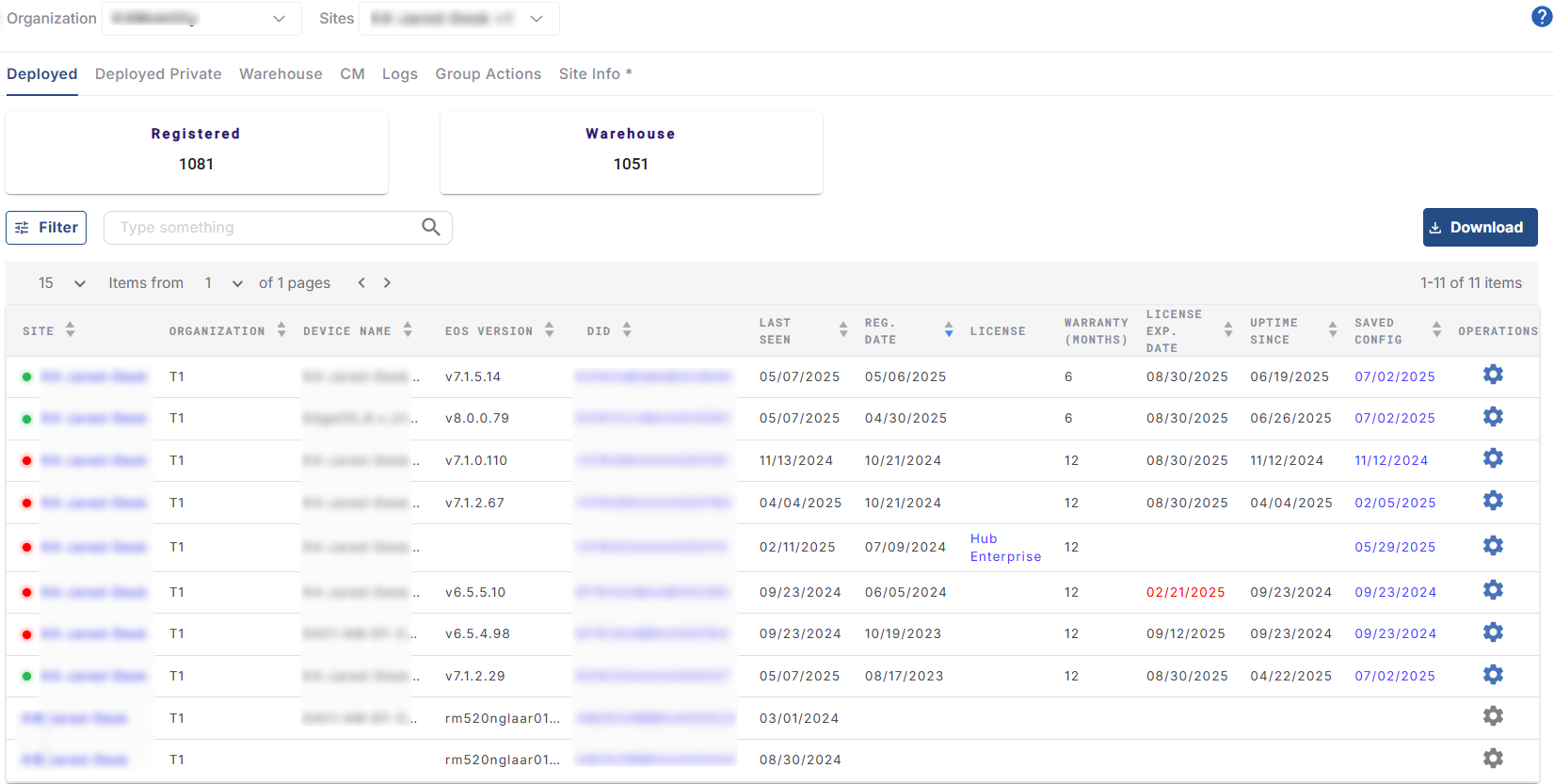

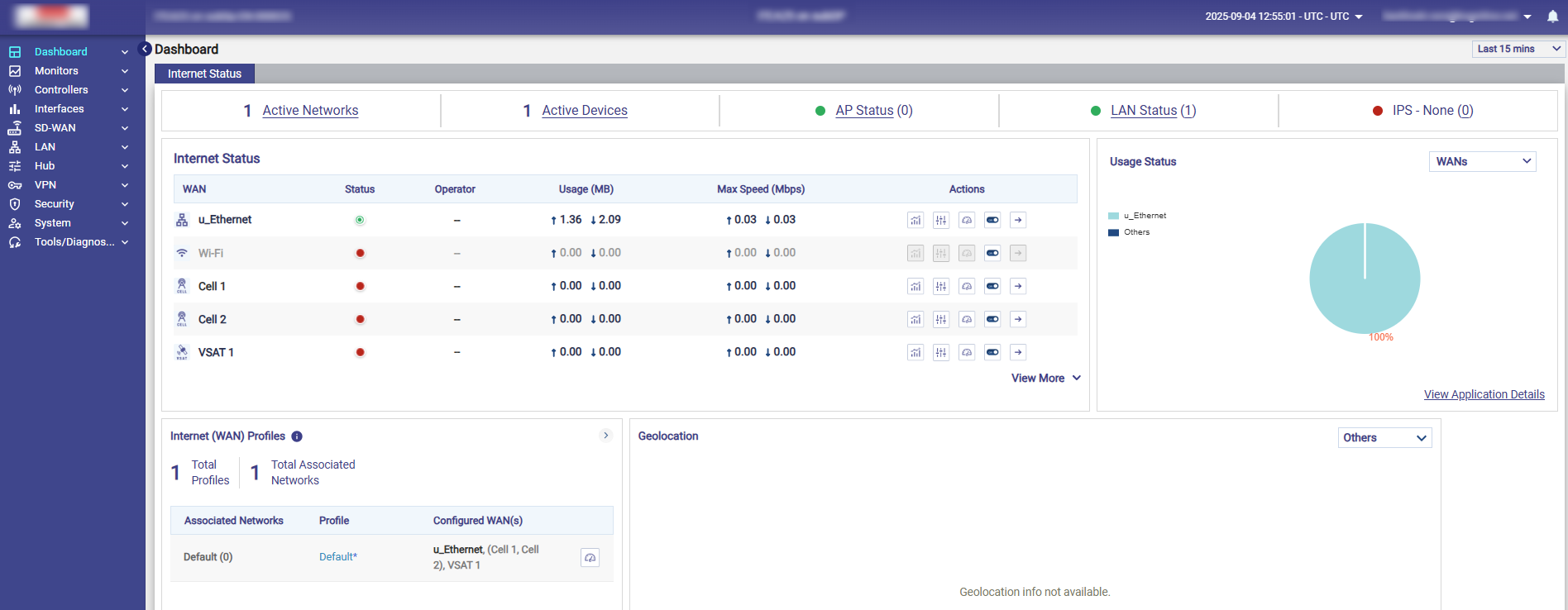

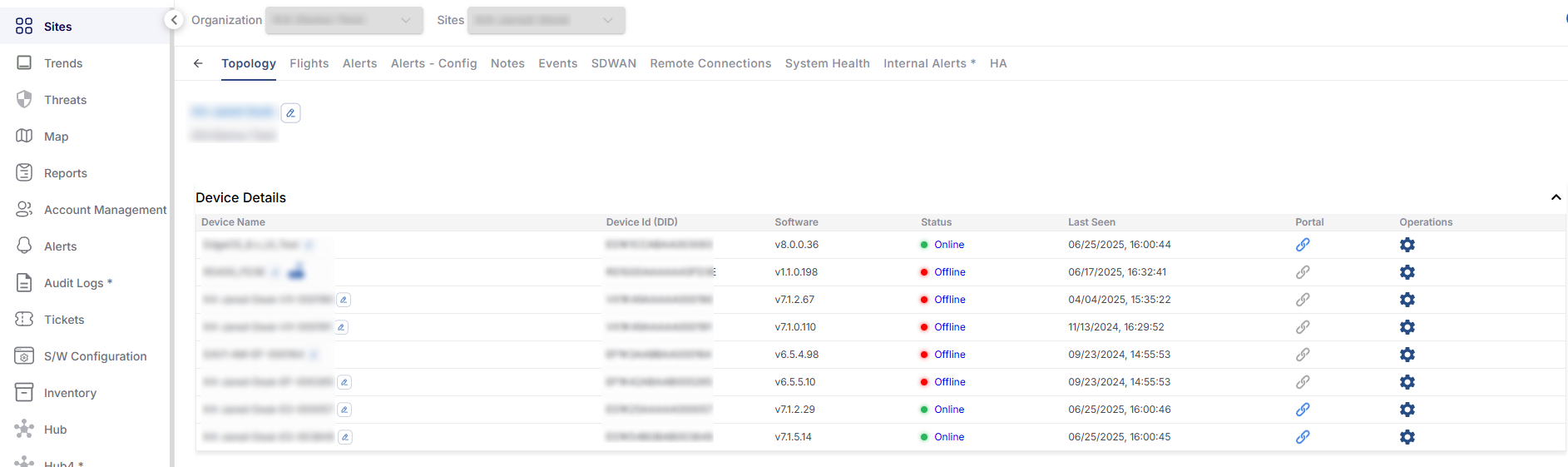

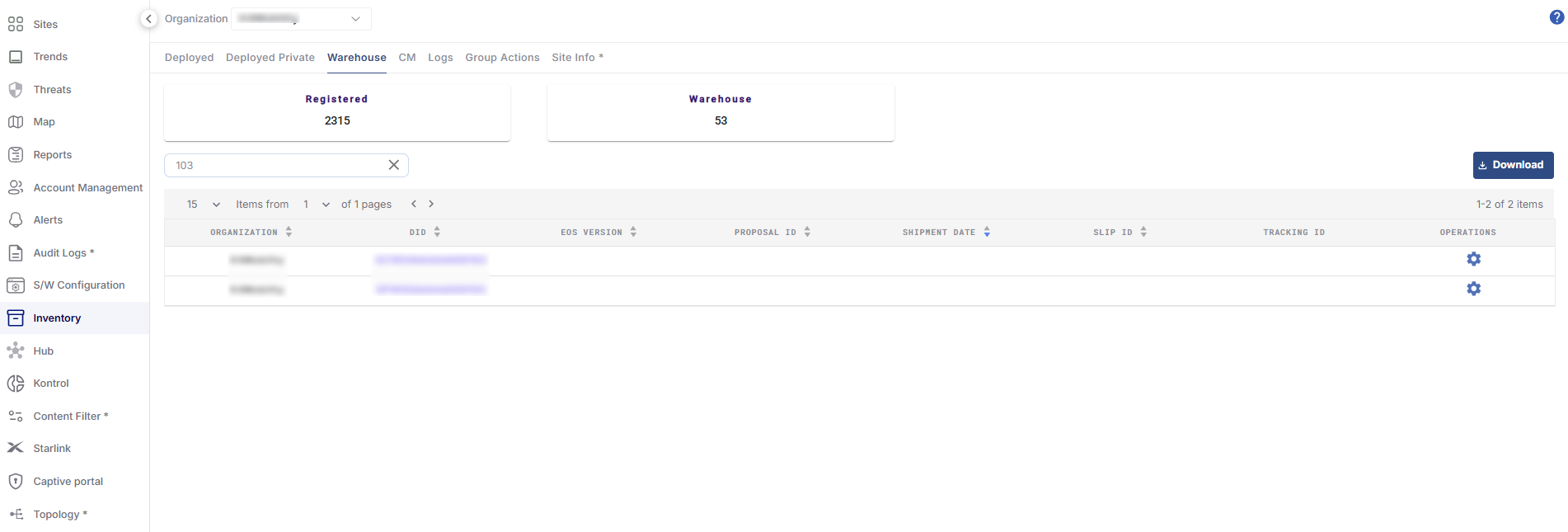

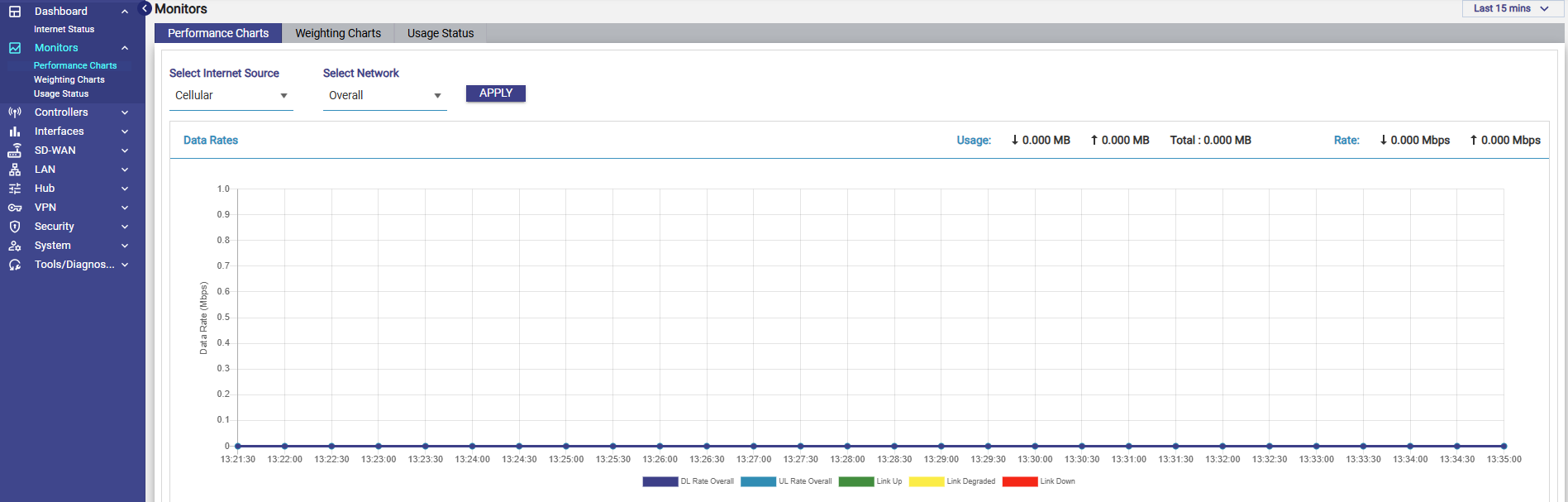

1.3 Accessing the System
