The ES515 system is a 1U rackmount network appliance engineered for edge computing, networking, and security applications. This hardware description provides an overview of its physical design, interfaces, and technical specifications.
ES515 System Physical Design

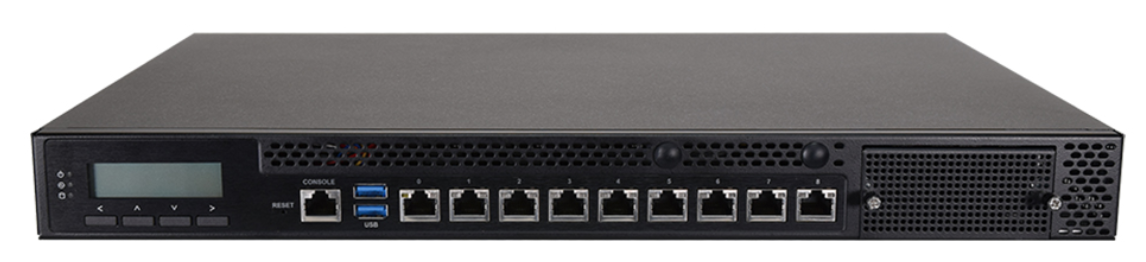

Front Panel
The ES515 front panel provides the following interfaces and controls:
-
1x 1GbE RJ45 MGMT port
-
8x 2.5GbE RJ45 LAN ports
-
2x USB 3.0 ports
-
1x RJ45 console port
-
1x reset button
-
1x 2x20-character LCM with 4-key keypad
-
Power, system status, and HDD activity LED indicators
-
1x PCIe x8 slot for a front slim-type NIC module

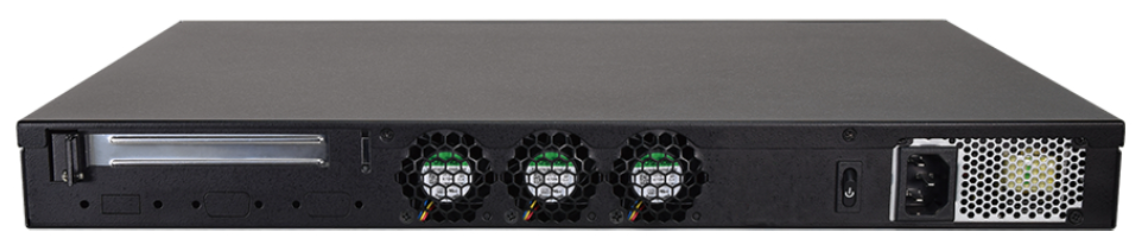

Rear Panel
The ES515 rear panel provides:
-
1x AC power inlet
-
1x power On/Off switch
-
3x smart cooling fans
-
1x PCIe expansion slot on supported configurations
Technical Specifications
|
External Interfaces |
Primary Limit or Specification |
|---|---|
|
Ethernet Ports |
1x 1GbE RJ45 MGMT; 8x 2.5GbE RJ45 LAN |
|
LAN Bypass |
3 pairs Gen3 SE LAN bypass |
|
NIC Expansion |
1x PCIe x8 slot for front slim-type NIC module |
|
Expansion Ports |
2x USB 3.0 |
|
Console |
1x RJ45 console port |
|
Display/Control |
2x20-character LCM with 4-key keypad |
|
Processor |
Intel® 12th/13th/14th Gen Core™ i9/i7/i5/i3, Pentium®, or Celeron® processor, depending on configuration |
|
Chipset |
Intel® H610E (SKU A) or Intel® Q670E (SKU B) |
|
Memory |
DDR5 up to 5600 MT/s, non-ECC UDIMM; 2x 288-pin DIMM sockets |
|
Maximum Memory |
Up to 64 GB |
|
Storage |
2x 2.5" internal HDD/SSD |
|
Onboard Storage |
SKU A: 1x M.2 2242 SATA; SKU B: 1x M.2 2242 SATA + 1x M.2 2280 NVMe |
|
Wireless Expansion |
1x M.2 2230 E-Key for Wi-Fi/Bluetooth on supported configurations |
|
PCIe Expansion |
1x PCIe x8 Gen4 FH/HL on SKU B; additional riser card required |
|
Watchdog |
Yes |
|
RTC |
Internal RTC with lithium battery |
|
TPM |
TPM 2.0 optional |
|
Cooling |
3x smart cooling fans; passive CPU heatsink |
|
Operating Temperature |
0°C to 40°C |
|
Non-Operating Temperature |
-40°C to 70°C |
|
Operating Humidity |
5% to 90% RH |
|
Non-Operating Humidity |
5% to 95% RH |
|
Dimensions |
438 x 321 x 44 mm (W x D x H) |
|
Weight |
Approximately 4.6 kg |
|
Mounting |
1U 19" rackmount |
|
Power |
220W ATX single PSU |
|
Power Input |
AC 100–240V, 50–60 Hz |
|
Certifications |
RoHS, CE/FCC Class A, UKCA, UL |
Device ID (DID) and Serial Number
Each device is assigned a unique Device ID (DID) and Serial Number. These identifiers are used for inventory management, registration, and customer support. The DID contains key hardware and manufacturing information, allowing customers and internal teams to identify the device model and configuration.
Device IDs are 17 characters long and follow the following format.
Example of an DID is - EC1G5AABCDEAABBCC
Description
Type Codel
The first two characters of the DID represent the Type Code, which identifies the product model. Type Code of the ES511 Model is EC.
Revision
Third character Revision is a single character that indicates the hardware revision of the device.
Manufacturer Code
Fourth character shows the Manufacturer Code. Refer the manufacturer codes below. In this example, G denotes the device was manufactured by GLiNet.
|
Manufacturer Code |
Manufactured By |
|
K |
K4 (Itasca) |
|
T |
Tecnova |
|
A |
Astronics |
|
G |
GLiNet |
Date
The next two characters denote the date - years from 2020 + month.
For example:
|
Code |
Year and Month Definition |
|
1A |
2021-10 |
|
1C |
2021-12 |
|
23 |
2022-03 |
|
2A |
2022-10 |
|
33 |
2023-03 |
Configuration
The next 5 characters denotes the configuration. These 5 characters are unique to each Model.
Serial Number
The last 6 characters are the serial number of the device.
