Topology

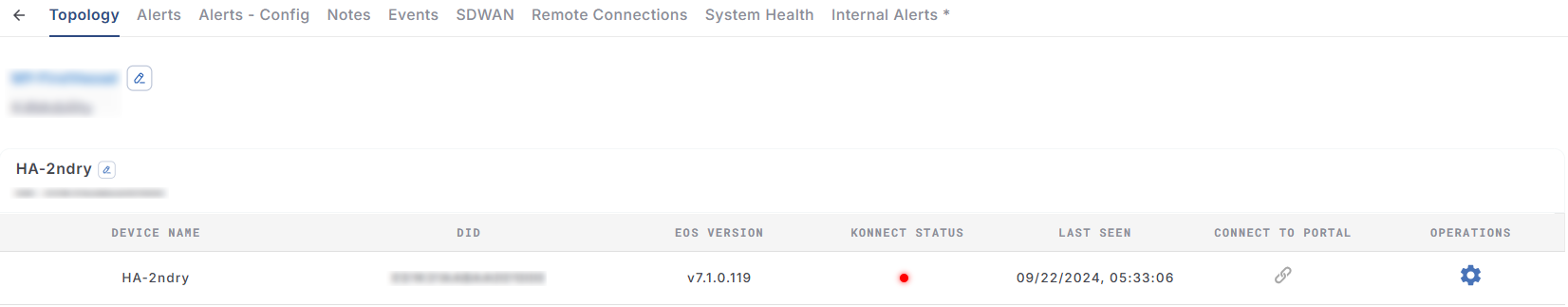

Once the user selects the required Site, the Topology screen opens. This screen lists all the devices deployed on the selected site.
-20241112-114915.png?inst-v=ef0116b7-c661-451d-a933-ac779a589e12)
Topology
Click the Update Site Name
icon to edit the Site name.
Click the Update Device Name
icon to edit the Device name.
The screen shows information such as:
Device Name - Name of the device
DID - Identification Number of the Device
EOS Version - Current EOS Version of the Device
Konnect Status - Status of the Device
Last Seen - Date and time when the device was last online
Connect to Portal - Link to open the Edge Portal
Click the
icon from the Operations column to open the Configurations pop-up box of the selected device.
The Configurations pop-up box contains the following options in its left menu bar - Traffic Policy, Firewall, WAN Profile, Hub IP, Quota, System and Organization. These options can be used to create, copy and modify various configurations for the selected device.
Traffic Policy
The Traffic Policy option is selected by default.

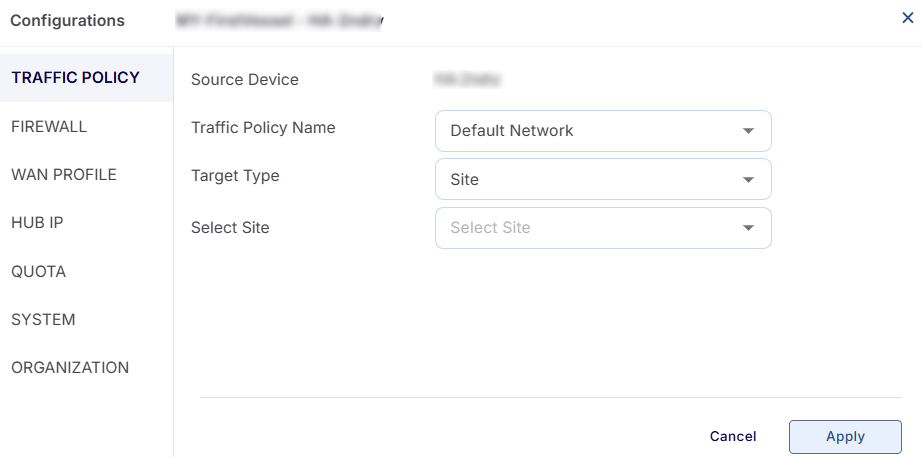

-20250116-133435.png?inst-v=ef0116b7-c661-451d-a933-ac779a589e12)
Traffic Policy
The name of the Source Device is shown in the first field.
In the Traffic Policy Name field, select the required Network or Device traffic policy from the dropdown menu. The dropdown menu lists all the traffic policies existing in the source device.
Select the Target Type from the dropdown menu. The user has three options to select the target type.
Site - The selected configuration from the source device will be applied to all the devices of the selected sites. The user must further select the required sites from the new Select Site field.
Device - The selected configuration from the source device will be applied to only the selected Target devices. The user must further select the required devices from the new Select Device.
Managed Group - The selected configuration from the source device will be applied to all the devices under the selected Groups. These groups can be created in the Group Actions tab of the Inventory screen in Kognitive Cloud. The user must further select the required groups from the new Managed Group field.
Click Apply button to copy the configurations from the source device and apply it to the target device/devices.
Firewall
Select the Firewall option from the left menu bar.

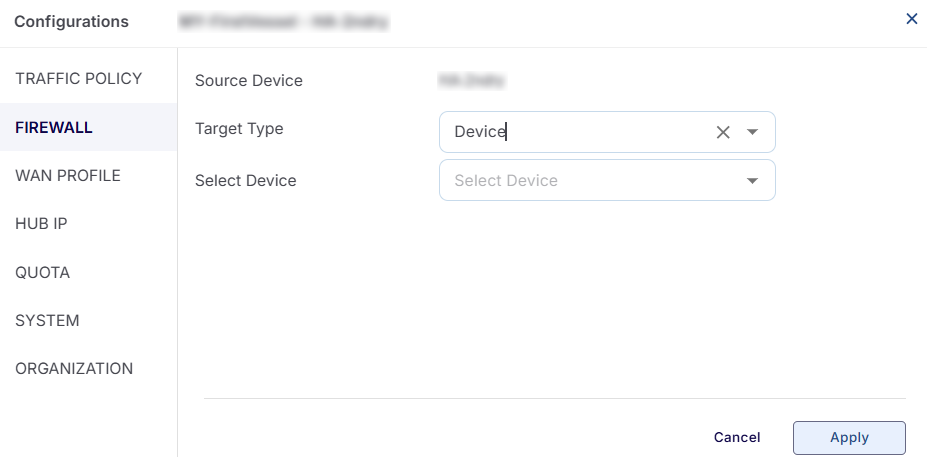

-20250116-134900.png?inst-v=ef0116b7-c661-451d-a933-ac779a589e12)
Firewall
The name of the Source Device is shown in the first field.
Select the Target Type from the dropdown menu. The user has three options to select the target type.
Site - The selected configuration from the source device will be applied to all the devices of the selected sites. The user must further select the required sites from the new Select Site field.
Device - The selected configuration from the source device will be applied to only the selected Target devices. The user must further select the required devices from the new Select Device.
Managed Group - The selected configuration from the source device will be applied to all the devices under the selected Groups. These groups can be created in the Group Actions tab of the Inventory screen in Kognitive Cloud. The user must further select the required groups from the new Managed Group field.
Click Apply button to copy the configurations from the source device and apply it to the target device/devices.
WAN Profile
Select the WAN Profile option from the left menu bar.

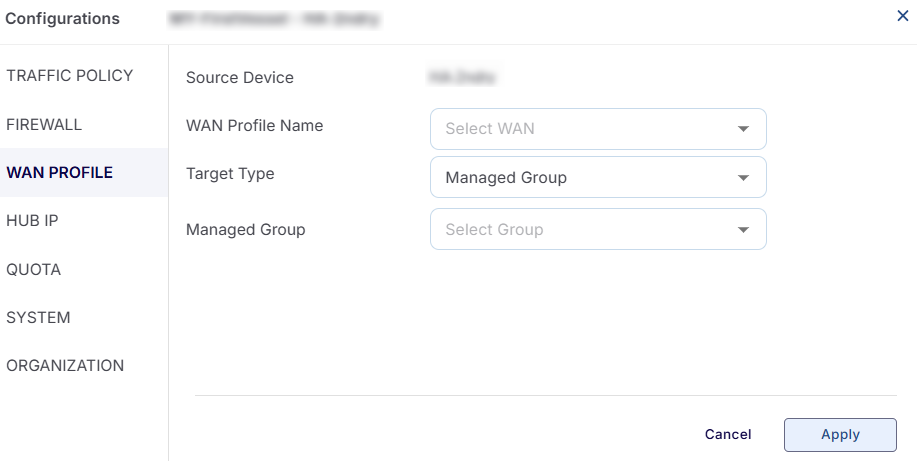

-20250116-151730.png?inst-v=ef0116b7-c661-451d-a933-ac779a589e12)
WAN Profile
The name of the Source Device is shown in the first field.
In the WAN Profile Name field, select the required WAN Profile from the dropdown menu. The dropdown menu lists all the WAN profiles existing in the source device.
Select the Target Type from the dropdown menu. The user has three options to select the target type.
Site - The selected configuration from the source device will be applied to all the devices of the selected sites. The user must further select the required sites from the new Select Site field.
Device - The selected configuration from the source device will be applied to only the selected Target devices. The user must further select the required devices from the new Select Device.
Managed Group - The selected configuration from the source device will be applied to all the devices under the selected Groups. These groups can be created in the Group Actions tab of the Inventory screen in Kognitive Cloud. The user must further select the required groups from the new Managed Group field.
Click Apply button to copy the configurations from the source device and apply it to the target device/devices.
Hub IP
Quota
Select the Quota option from the left menu bar.

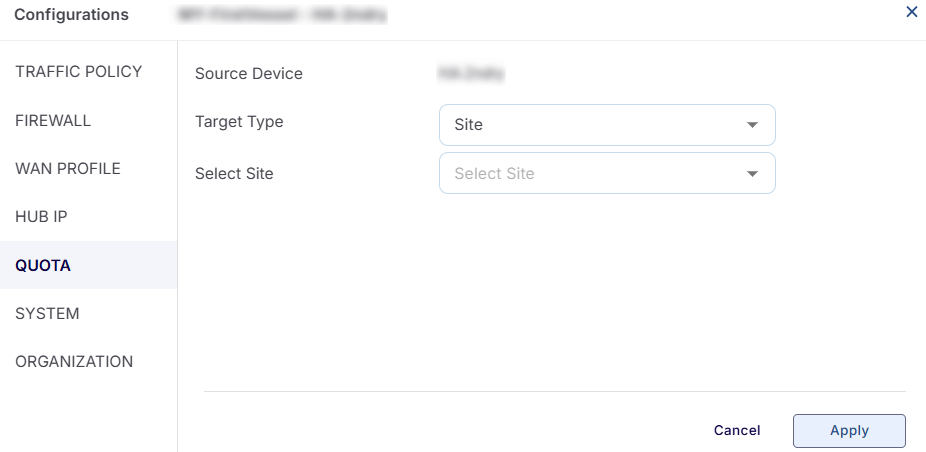

-20250116-152208.png?inst-v=ef0116b7-c661-451d-a933-ac779a589e12)
Quota
The name of the Source Device is shown in the first field.
Select the Target Type from the dropdown menu. The user has three options to select the target type.
Site - The selected configuration from the source device will be applied to all the devices of the selected sites. The user must further select the required sites from the new Select Site field.
Device - The selected configuration from the source device will be applied to only the selected Target devices. The user must further select the required devices from the new Select Device.
Managed Group - The selected configuration from the source device will be applied to all the devices under the selected Groups. These groups can be created in the Group Actions tab of the Inventory screen in Kognitive Cloud. The user must further select the required groups from the new Managed Group field.
Click Apply button to copy the configurations from the source device and apply it to the target device/devices.
System
Select the System option from the left menu bar.
The name of the Device is shown in the first field.
The Current EOS Version of the device is shown in the second field.
The Latest EOS Version available for the device is shown in the third field. Click the Upgrade button to download the latest EOS version and apply it.

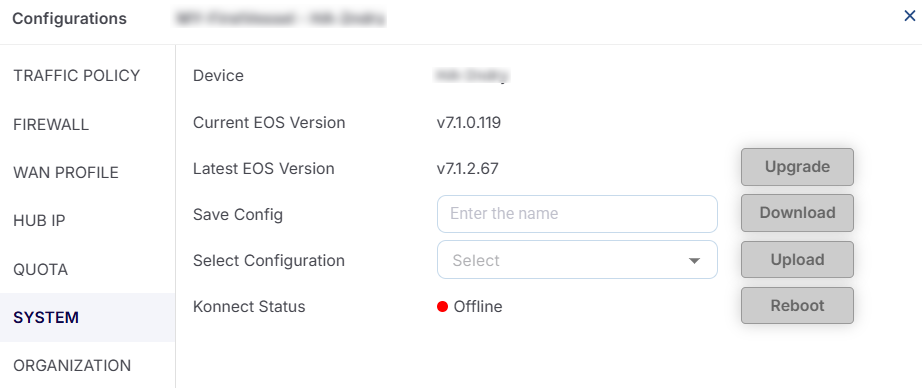

-20250116-152938.png?inst-v=ef0116b7-c661-451d-a933-ac779a589e12)
System
The Save Config field is used to save the current configuration of the source device as a backup configuration. Enter the name of the Backup configuration and click the Download button to save it.
The Select Configuration field is used to apply an backup configuration from the system to the source device.
Select the required from the dropdown menu in the Select Configuration field. All the available backup configurations suitable for the current device will be listed in the dropdown menu.
Select the Upload button to apply the selected configuration.
The Konnect Status field shows the status of the internet connectivity of the current device. Click the Reboot button to restart the device.
Organization
Select the Organization option from the left menu bar.
Actions:
Config Manager: Please refer the below Config Manager section and its dedicated help page.
Upload Configuration:
Select Upload Configuration
icon to apply a new configuration to the selected device from the list of available configurations.
Select the required configuration from the dropdown list in the Select Configuration field.
Click the Upload Now button.
Download Configuration:
Select the Download Configuration
icon to take a manual backup of the configuration existing in the selected device and store it.
Enter a name for the backup in the Config Name field.
Click Download Now button.
EOS Reboot:
Click EOS Reboot
icon to reboot the configuration of the selected device.
-20240605-221244.png?inst-v=ef0116b7-c661-451d-a933-ac779a589e12)
Upload Configuration
-20240605-221416.png?inst-v=ef0116b7-c661-451d-a933-ac779a589e12)
Download Configuration
Config Manager
Please refer the below help page for more information about Config Manager feature:
Logs
Please refer the Config Manager help page given above for more information about the Logs section.
