Remote Access to an KonnectOS System with KonnectRM
After registration, any KonnectOS System is accessible through KonnectRM.
To view the KonnectOS System on KonnectRM, perform the following steps.
Login to KonnectRM with a valid account.

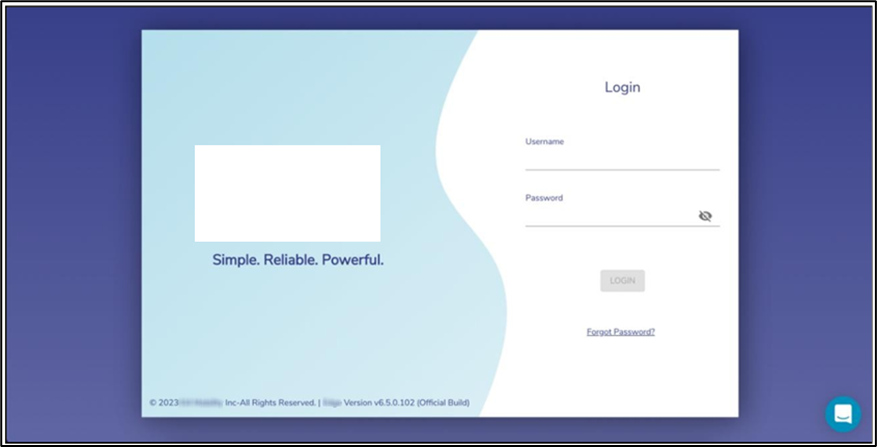

KonnectRM Login Page
Enter the Site Name of the System in the Search By Location input field

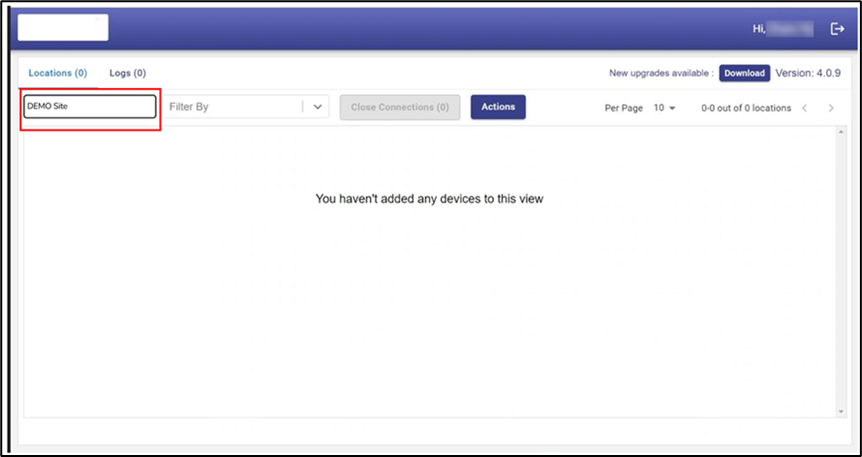

KonnectRM Landing Page, Site Search
The Site Name becomes available in the drop down

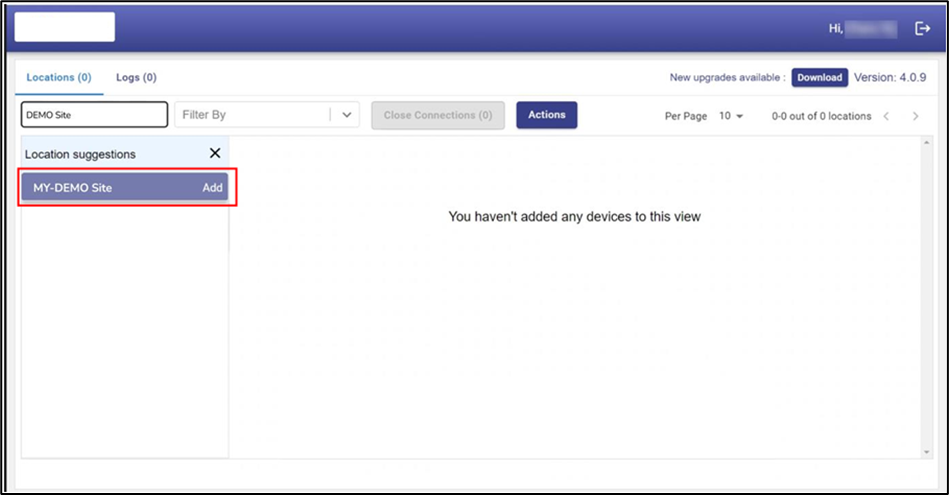

KonnectRM - Select a Site
Click the Add button next to the Site Name to make the site available in the main table.
Click on the expand arrow icon to expand the site. The systems available in this Site are listed. The user can access the System with ssh and experience the local KonnectOS web portal through a browser

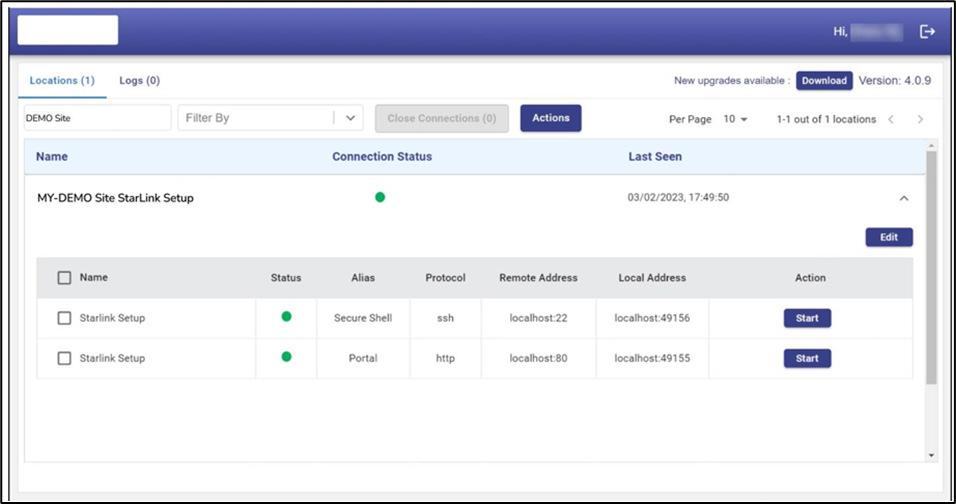

KonnectRM - View System Details
Click on the corresponding Start button - the Stop and Open button appear

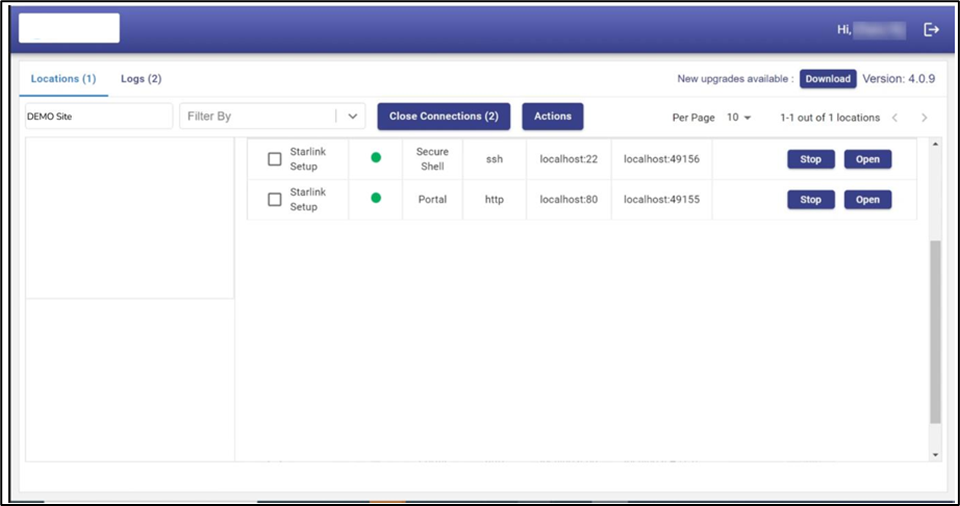

KonnectRM - Open Connection
Click on the Open button to access the selected interface/port of the KonnectOS system
When finished, click on Stop to release the connection.
