EF200 - Application Examples
EF200 and Starlink

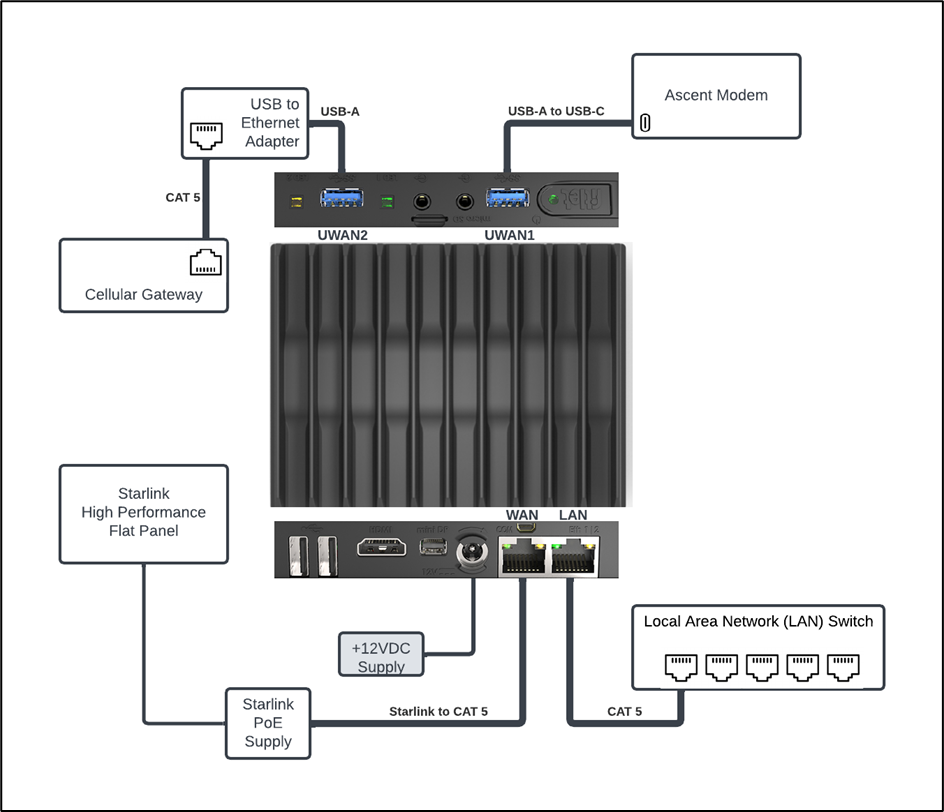

The figure below shows a common configuration of EF200 using: Starlink, an Ethernet Cellular Gateway, a USB-C Ascent Modem, and an ethernet LAN switch.
EF200 Example with Starlink and 5G
EF200 and Starlink, with USB Ethernet WAN Expansion

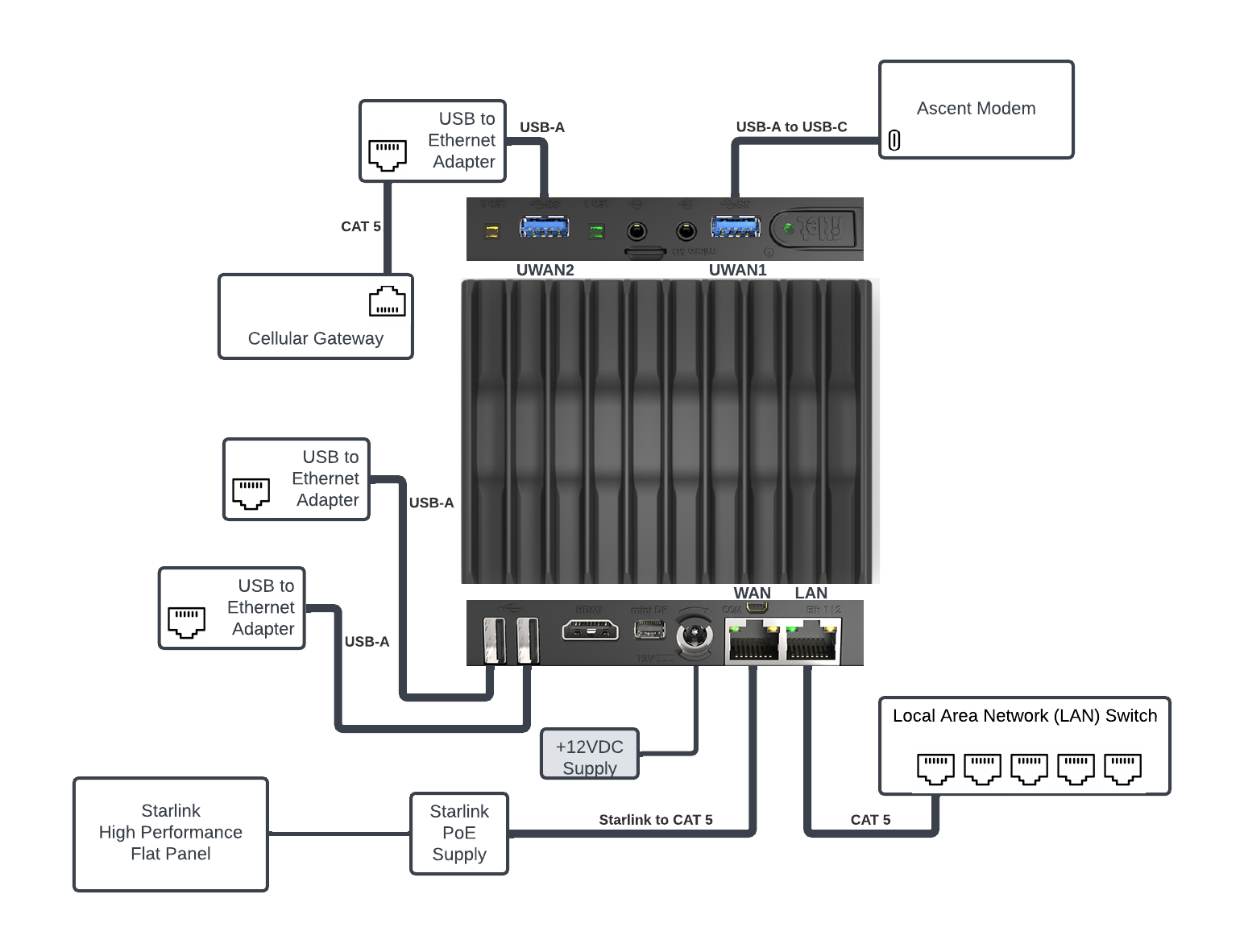

The figure below shows a common configuration of EF200 using: Starlink, an Ethernet Cellular Gateway through a USB to Ethernet expansion dongle, a USB-C Ascent Modem, an ethernet LAN switch, and two USB to Ethernet dongles for additional WAN sources.
EF200 Example using Ethernet Adapters for WAN expansion
EF200 SD-WAN for Multi-Orbit VSAT with 5G

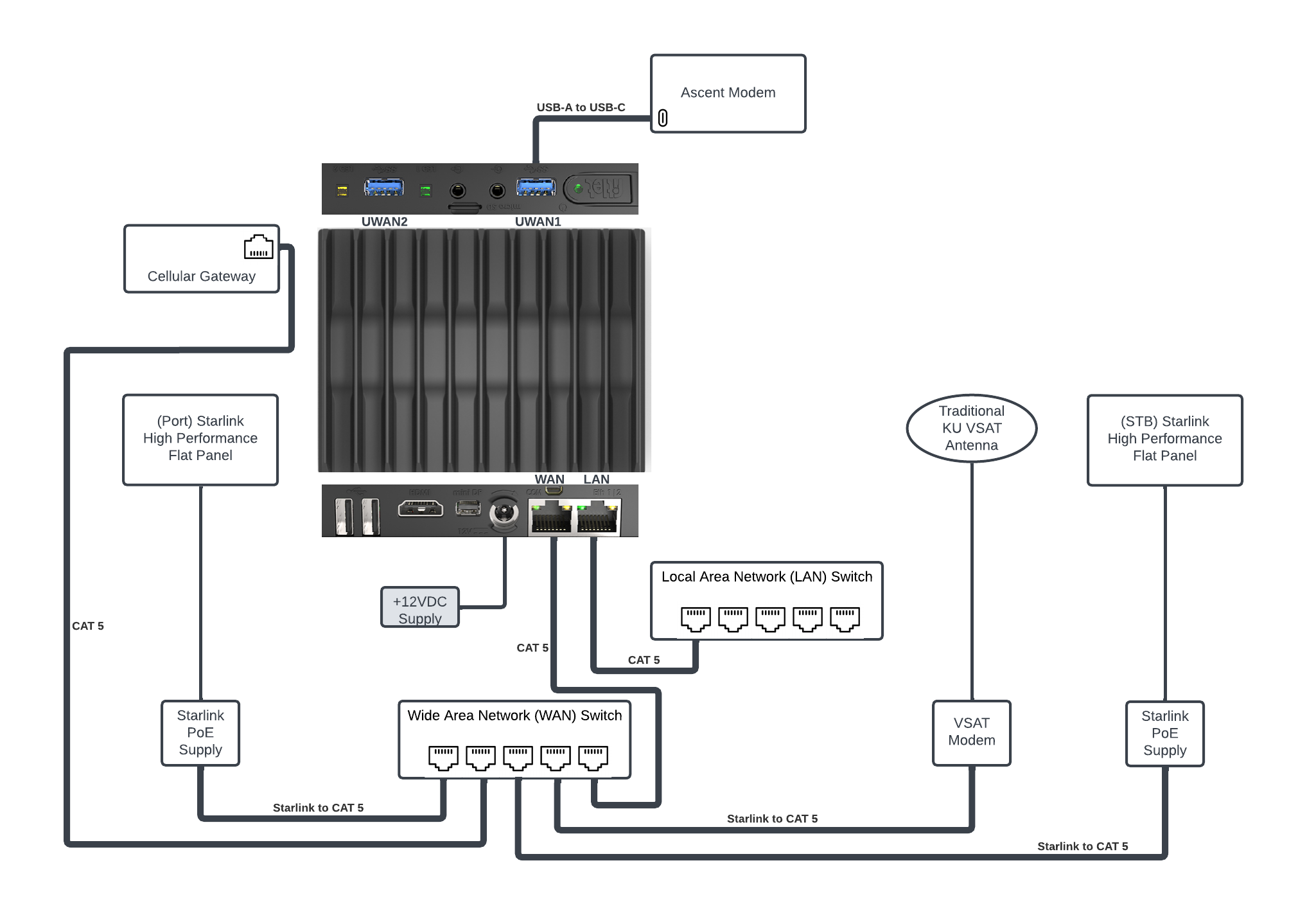

The figure below shows a common configuration of EF200 using: An ethernet LAN switch, a USB-C Ascent Modem 5G, and a 5-port ethernet switch for WAN selection of: Dual Starlink Terminals, a KU VSAT Terminal, and an Ethernet Cellular Gateway.
EF200 Example with Dual Starlink, VSAT, and Dual 5G Modems
