ES120 - Hardware Description
Enterprise Internet and LAN Management System
The ES120 runs KonnectOS as part of the Kognitive Edge platform. It can be managed directly, or seamlessly through the Kognitive Cloud web portal and the Edge Mobile App.
The ES120 supports an array of services efficiently and effectively, reducing complexity and simplifying installations. The Kognitive Edge platforms consists of software, applications, cloud systems, and advanced analytics choose the best network for the location and conditions while providing users the tools to customize their system for the best user experience.
ES120 Physical Design
The ES120 is a Small Form Factor (SFF) industrial-grade server that hosts an Intel multi-core CPU running the KonnectOS software. The following figures show the primary interfaces and connections of the ES120 system.
ES120 - Back Panel

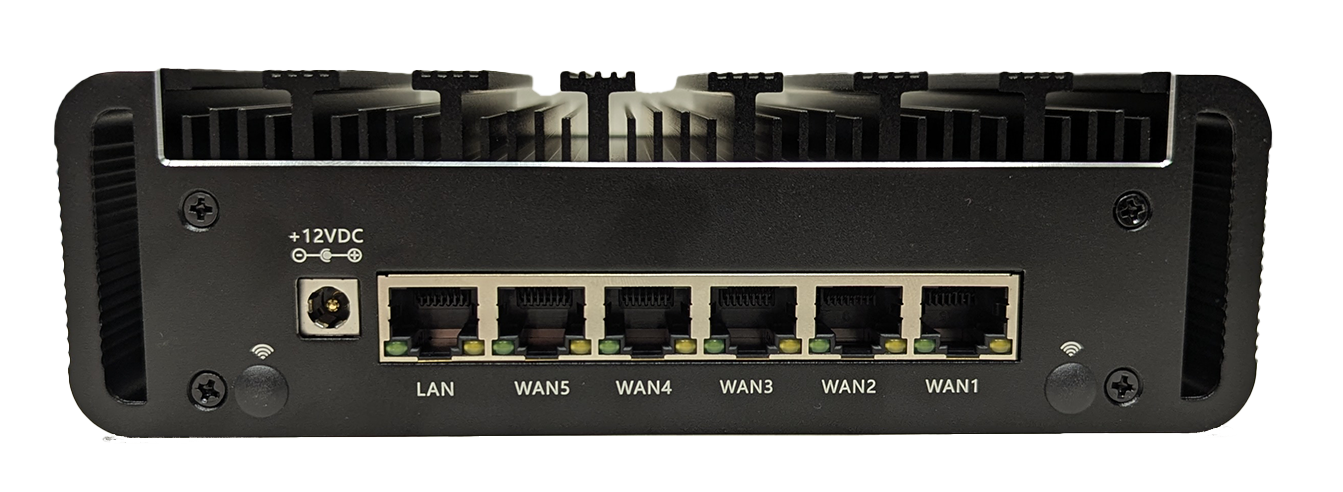

A DC input (+12VDC), power/disk LED, and flexible LAN/WAN RJ45 ports are available on the back panel.
ES 120 Front Panel

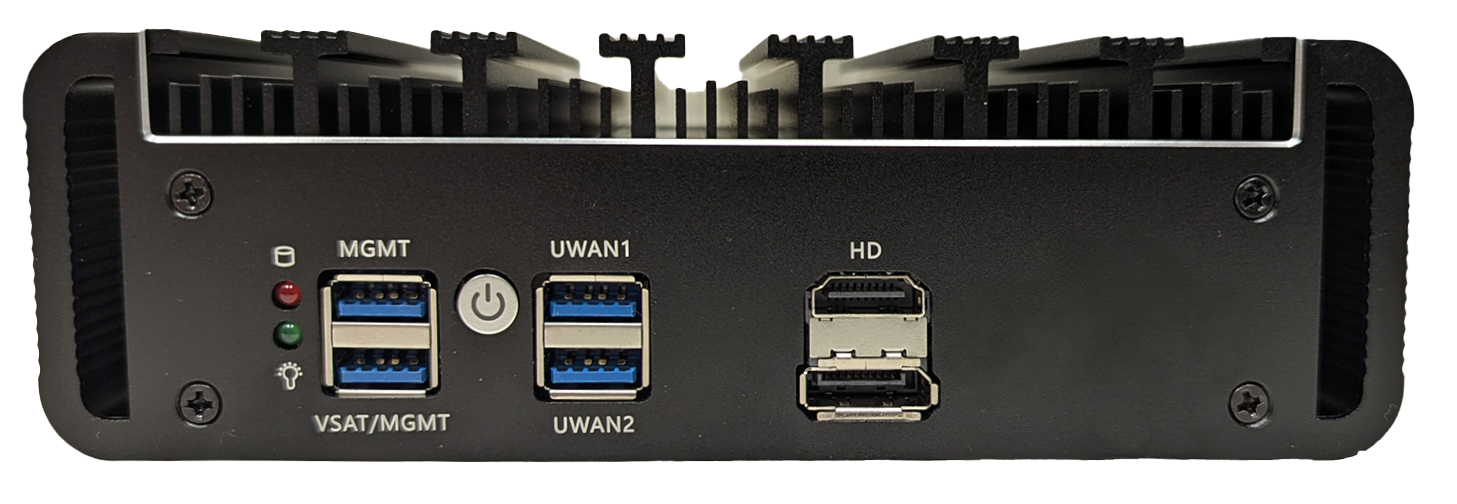

The power button, HDMI & Display Port, 4x USB 3.0 connections are on the front panel. The USB 3.0 ports provide system management as well as additional WAN/LAN ports by using an adapter or appropriate USB WAN device, like a 5G modem. The HDMI & Display Ports are unused and reserved for future use.
For details of the external interfaces and primary limits or technical specifications, refer the below table.
External Interfaces | Primary Limit or Specification |
WAN Management | Supports up to 12x WAN Sources |
Ethernet | 6x 2.5GbE ports, switchable WAN/LAN |
Network Configurability | Up to 500 Clients, 30 VLAN Networks; Stateful Firewall |
Compute Power | Intel i3 1215u at 4.4 GHz, 6 core / 8 threads; 16 GB DDR5, 128 GB SSD |
Expansion | 4x USB 3.0 ports; 5G modem adapter supported |
Cooling | Passive, Fanless – Silent |
Mounting | Standalone / VESA / Rack mount kit available |
Power | +12VDC (120W Max); 100-240 VAC, 50-60 Hz (AC/DC Power Supply Included) |
Physical | 7” x 5” x 2.25” / 17.8 x 12.7 x 5.7 cm - 2.54 lbs / 1.15 kg |
Environmental | Operating temperature: -10 to +50 C; Humidity up to 95%, non-condensing |
Warranty | 1 Year limited |
ES120 Technical Specifications
Device ID (DID) and Serial Number
Each device is assigned a unique Device ID (DID) and Serial Number. These identifiers are used for inventory management, registration, and customer support. The DID contains key hardware and manufacturing information, allowing customers and internal teams to identify the device model and configuration.
Device IDs are 17 characters long and follow the following format.
Example of an DID is - EC1G5AABCDEAABBCC
Description
The first two characters of the DID represent the Type Code, which identifies the product model. Here in this example, EC type code denotes product model EdgeFocus.
Third character Revision is a single character that indicates the hardware revision of the device.
Fourth character shows the Manufacturer Code. Refer the manufacturer codes below. In this example, G denotes the device was manufactured by GLiNet.
K | K4 (Itasca) |
T | Tecnova |
A | Astronics |
G | GLiNet |
The next two characters denote the date - years from 2020 + month. For example:
1A | 2021-10 |
1C | 2021-12 |
23 | 2022-03 |
2A | 2022-10 |
33 | 2023-03 |
The next 5 characters denotes the configuration. These 5 characters are unique to each Model.
The last 6 characters are serial number. For KonnectOpen devices, this is the primary MAC address of the device.
