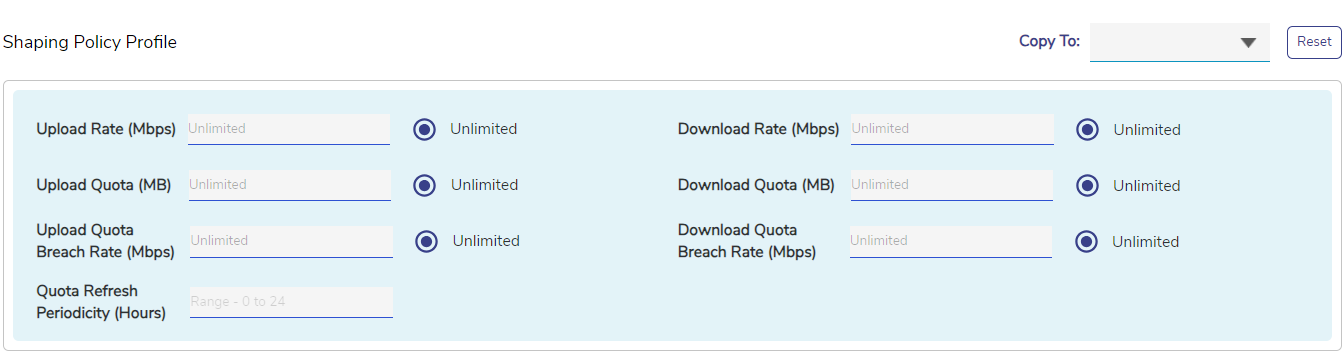

Shaping Policy Profile
To enter data in the respective fields in the Shaping Policy Profile section, refer the table below.
![image-20240404-085811.png](../__attachments/1940684849/image-20240404-085811.png?inst-v=113b1a36-52f9-4344-a825-138b5322243c)
Shaping Policy Profile
Upload Rate | By default, Unlimited is selected. This indicates that the unlimited upload speed is configured, and the Unlimited speed is displayed corresponding to the Upload Rate. To configure the upload speed, move the slider to the right or click the speed. The Unlimited is cleared and the upload speed configured is displayed corresponding to the Upload Rate. |
Download Rate | By default, Unlimited is selected. This indicates that the unlimited download speed is configured, and the Unlimited speed is displayed corresponding to the Download Rate. To configure the download speed, move the slider to the right or click the speed. The Unlimited is cleared and the download speed configured is displayed corresponding to the Download Rate. |
Upload Quota
| This indicates the permissible quota up to which the user can upload the data. |
By default, Unlimited is selected. This indicates that the unlimited upload quota is configured, and the Unlimited quota is displayed corresponding to the Upload Quota. | |
| To configure the upload quota, move the slider to the right or click the quota. The Unlimited is cleared and the upload quota configured is displayed corresponding to the Upload Quota. |
Download Quota | This indicates the permissible quota up to which the user can download the data. |
By default, Unlimited is selected. This indicates that the unlimited download quota is configured, and the Unlimited quota is displayed corresponding to the Download Quota. To configure the download quota, move the slider to the right or click the quota. The Unlimited is cleared and the download quota configured is displayed corresponding to the Download Quota. | |
Quota Refresh Periodicity | This indicates the expiry in hours after which the upload quota and download quota will be refilled or reset to the pre-configured upload quota and download quota respectively. |
To configure the quota refresh periodicity, move the slider to the right or click the refresh periodicity. The refresh periodicity configured is displayed corresponding to the Quota Refresh Periodicity. | |
Upload Quota Breach Speed | This indicates the upload speed that will be applicable after the UL quota is exhausted. By default, Unlimited is selected and the Unlimited UL quota breach speed is displayed corresponding to the Upload Quota Breach Speed. This indicates that the UL quota breach speed will continue until the UL quota is refilled based on the quota refresh periodicity. To configure the UL quota breach speed, move the slider to the right or click the breach speed. |
| The UL quota breach speed configured is displayed corresponding to the Upload Quota Breach Speed. |
Download Quota Breach Speed | This indicates the download speed that will be applicable after the DL quota is exhausted. |
By default, the Unlimited is selected and the Unlimited DL quota breach speed is displayed corresponding to the Download Quota Breach Speed. This indicates that the DL quota breach speed will continue until the DL quota is refilled based on the quota refresh periodicity. To configure the DL quota breach speed, move the slider to the right or click the breach speed. The DL quota breach speed configured is displayed corresponding to the Download Quota Breach Speed. | |
Copy To | To copy the traffic policy of a WAN, perform the following steps. Steps Click Copy To. Click a WAN whose traffic policy is to be applied to the WAN.
|
