Configuration Management (CM)

The Configuration Management (CM) screen consists of two tabs namely, Configurations and Backups. By default, the Configurations tab will be selected.

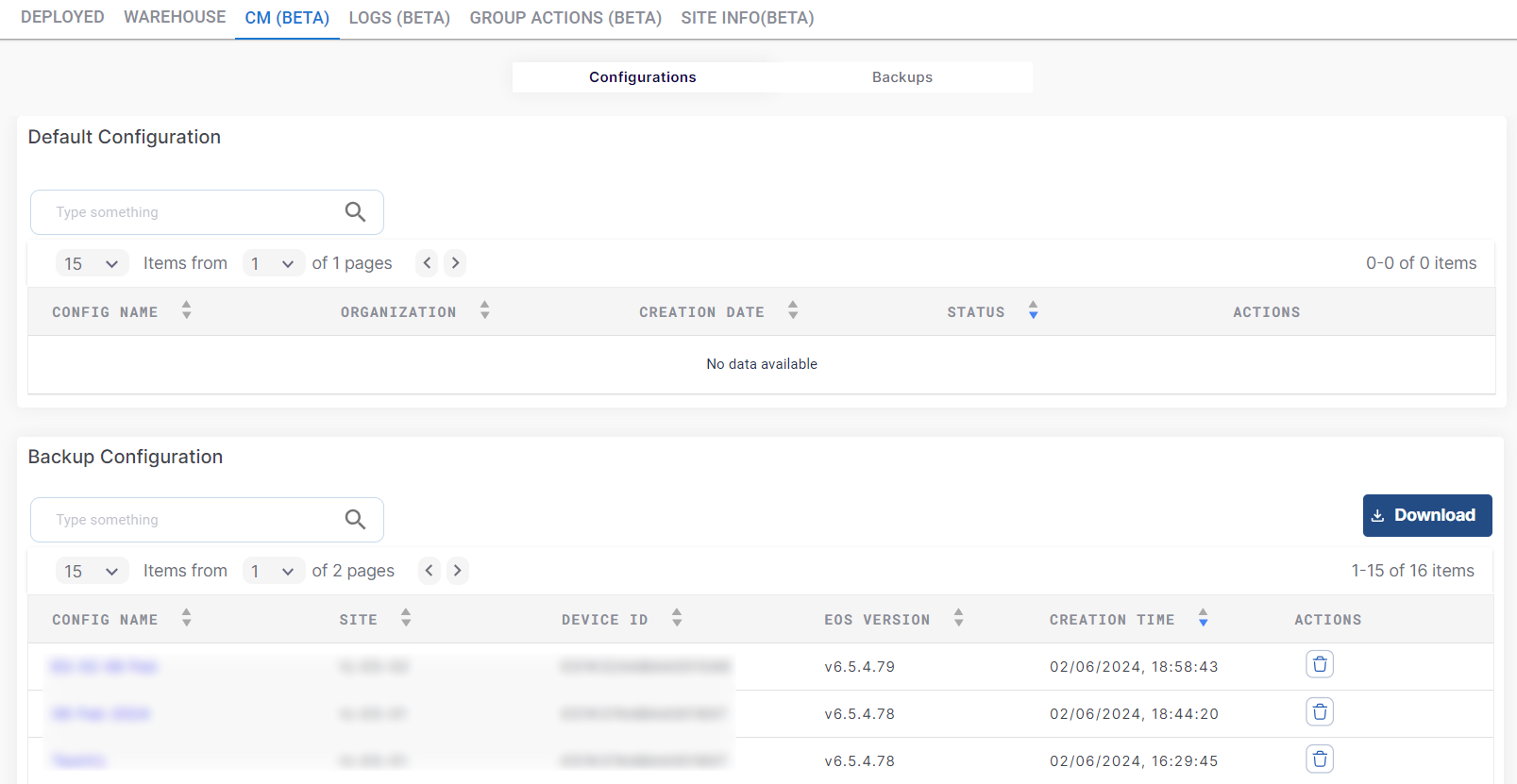

Configurations

The configurations tab consists of two tables namely, Default Configuration and Backup Configuration.

Default Configuration

The Default Configuration table shows the list of all default configurations created by the user. The table shows the following information:

• Config Name – Name of the configuration.

• Organization – Name of the organization.

• Creation Date – Date and time of creation.

• Status – Status of the configuration (Active/Not Active)

• Actions:

  • Edit Configuration

  • Delete Configuration.

• Click the Search field to search for the configuration based on the Config Name/Group/Creation Date/Status.

Backup Configuration

The Backup Configuration table shows the list of all the backup configurations taken manually by the user from the Deployed tab and copied from the daily backups. The users can apply these configurations to any of their devices. The table shows the following information:

• Config Name – Name of the configuration.

• Site – Name of the site.

• Device ID – Serial Number of the device.

• EOS Version - The software version of EdgeOS when the last backup was taken.

• Creation Time – Date and time of creation.

• Actions:

  • Delete Configuration.

• Click the Search field to search for the configuration based on the Config Name/Site/Device ID/EOS Version/Creation Time.

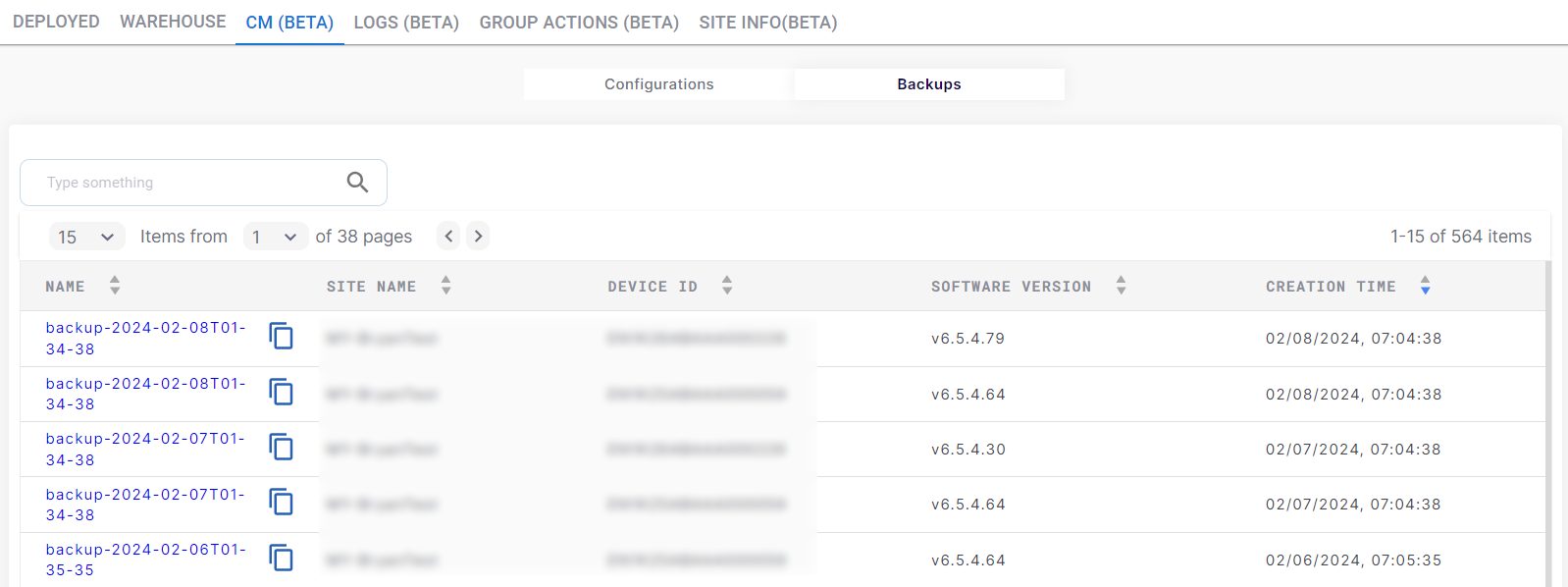

Backups

Click the Backups tab. This tab shows a table that lists all the automatic backups saved in the system. The table shows the following information:

• Name – Name of the backup.

  • The automatic backups cannot be applied to user devices directly.

  • Click Copy icon to copy this configuration to the Backup Configuration table.

  • Enter the required Name for the backup.

  • Click Tick mark icon.

  • The backup is copied and moved to the Backup Configuration table.

  • Now the backup can be applied to any device as per the user’s needs.

• Site Name – Name of the site the device belongs to.

• Device ID – ID of the Device.

• Software Version - The software version of EdgeOS when the last backup was taken.

• Creation Time – Date and time of the Software Backup.

• Click the Search field to search for the configuration based on the Name/Site Name/Device ID/Software Version/Creation Time.
