Logs

The Logs page provides a detailed log of actions performed on various network devices across different sites or groups. It helps the users to track upgrades, patches, and other operations, along with their status and initiators.

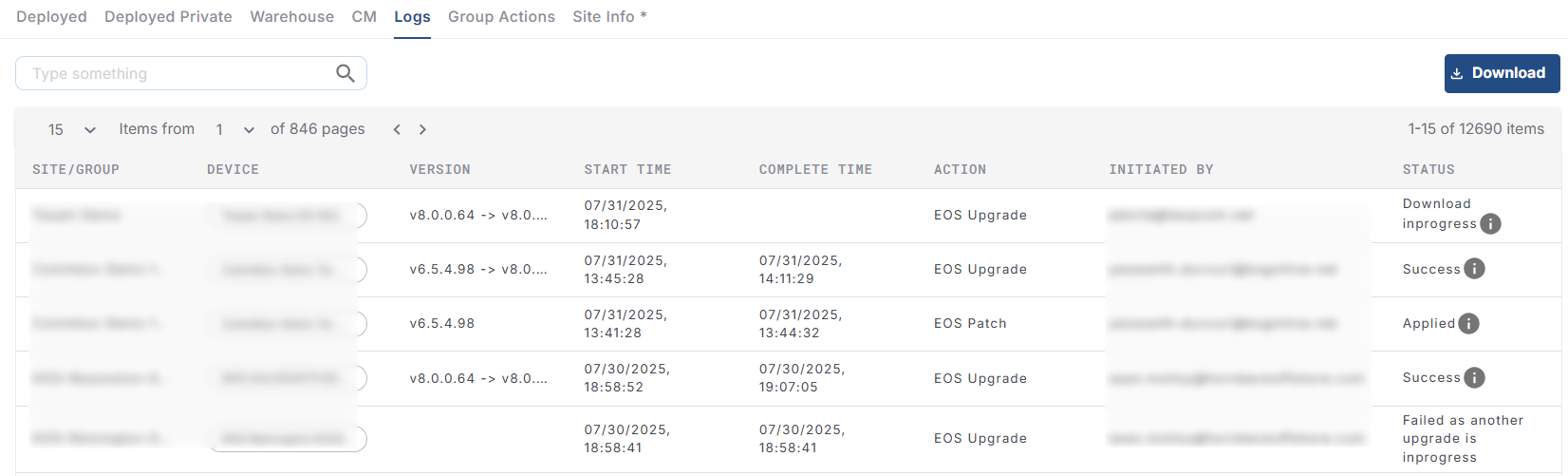

• Click the Logs tab. The log of actions performed in the devices of the selected organization and sites is shown in the table below.

• The table shows the below information:

  • Site / Group - Name of the site / group associated with the device

  • Device - Name of the Device

  • Version - The software version before and after the action (e.g., upgrade).

  • Start Time - The timestamp when the action began.

  • Complete Time - The timestamp when the action finished.

  • Action - The type of operation performed (e.g., EOS Upgrade, Patch).

  • Initiated By - The user who triggered the action.

  • Status - The current state or result of the action (e.g., Success, In Progress, Applied).

• When there are many devices to be listed in the table, the pagination helps the user navigate to each page by using the < > buttons.

• Click the dropdown menu given at the left of the pagination buttons to choose the number of devices to be seen in a single page. The user can choose between 10/15/25/50/100 from the dropdown menu.

• Click the SEARCH field to search for the device based on the Site/Group/Device/EOS Version.

• Click the Download button to download the entire table data locally in CSV format.
