System Profile

A default WAN Profile is created for the Hub system with the priority of the enabled WANs configured. The WAN links are arranged in a priority order where there is never more than one WAN link for a given priority.

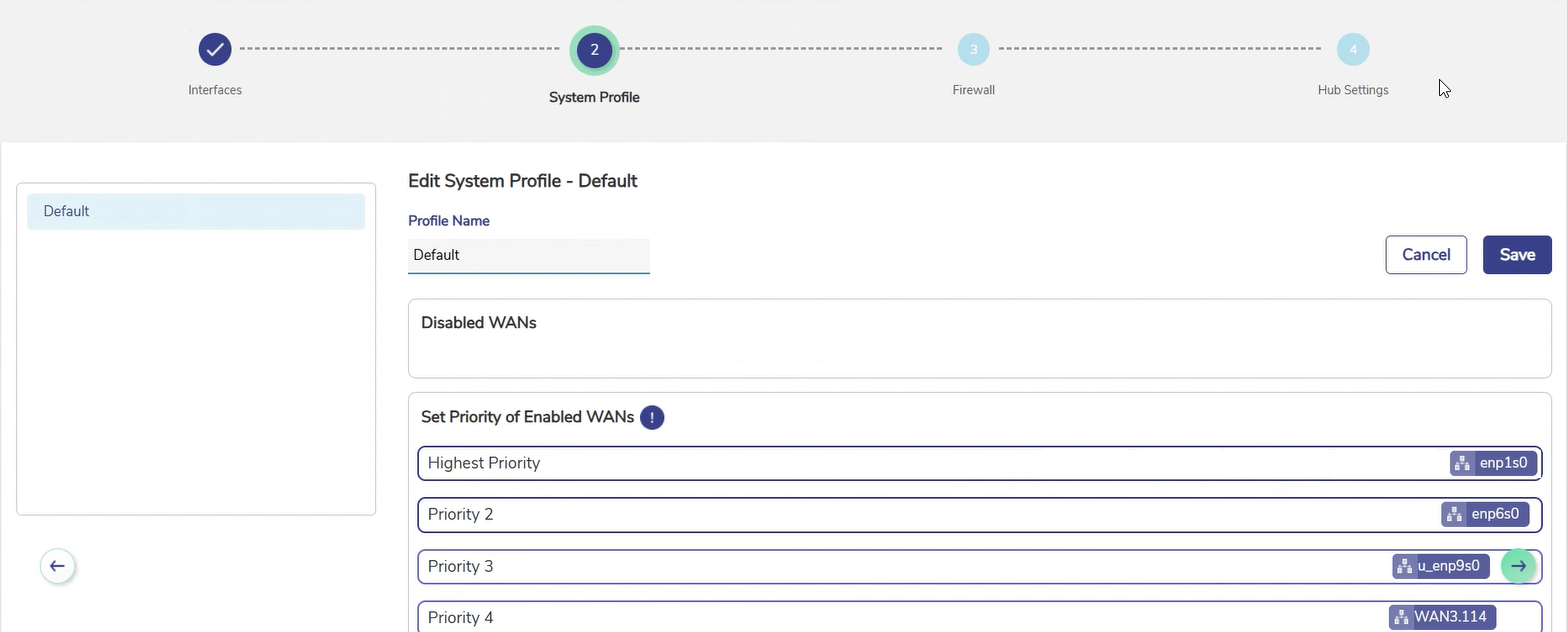

System Profile

  • Select the System Profile option from the Configuration Wizard screen.

  • The Default system profile is available for the user.

Fields

Description

Profile Name

Enter the name of the profile.

Disabled WANs

Disabled WAN sources are displayed.

Set Priority of Enabled WANs

Highest Priority

To assign WAN links/Interfaces to a priority level, perform the following steps.

Note: Only Interfaces enabled on the Interfaces tab will be visible on the WAN Profile screen.

Steps

Drag and drop the WANs available from the Disabled WANs section to the respective priority section.

Priority 2

Refer to Highest Priority

Priority 3

Refer to Highest Priority

Priority 4

Refer to Highest Priority

Lowest Priority

Refer to Highest Priority

Editing a WAN Profile

To edit a WAN profile, perform the following steps.

Steps

  • The WAN Profile appears on the right section.

  • The user can edit the profile name or WAN priorities.

  • Click Save button.

  • The WAN Profile is successfully saved.
