Quota Kontrol

This manual guides the user through the steps required to set up and use the Quota Kontrol screen in Kognitive Cloud. The Quota Kontrol screen enables the user to set quotas for the WAN links on any of the devices deployed in their sites. The users can also specify particular actions to be done when the data usage reached a specific amount. For example, users can set a notification to be sent to their email IDs when a particular amount of data is used up, can assign WAN profiles & traffic policies to limit the data usage and also disable the internet connectivity when a given quota of data is used up.

Login to the Kognitive Cloud using valid credentials.

In the Organization field, select the Organization or sub-organization from the dropdown menu. The logged in admin Organization is populated by default here. This is the organization corresponding to the email ID used to login.
The dropdown list consists of all the sub-organizations under logged in admin organization.
Select the Sites from the dropdown menu.
Select Quota Kontrol option from the left menu bar.

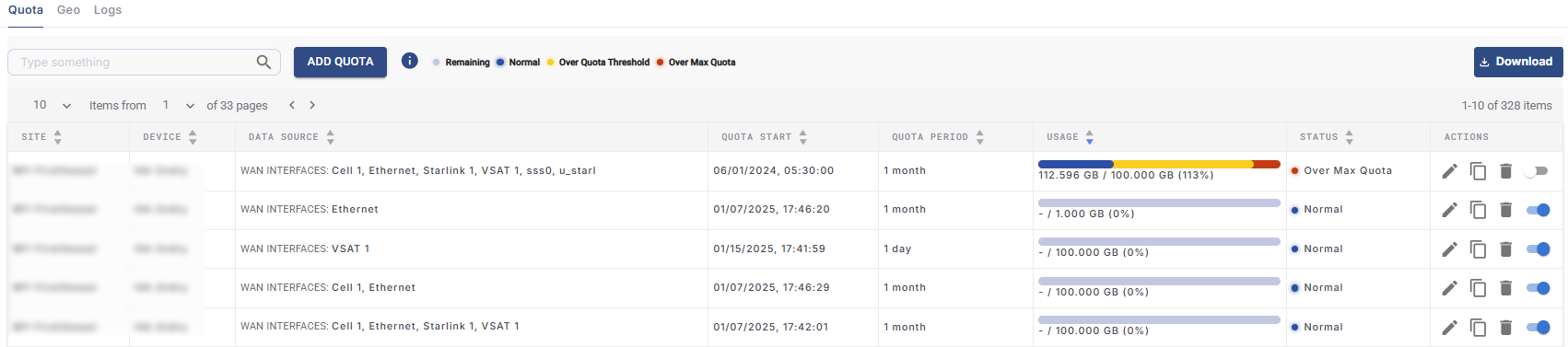

The Quota Kontrol screen opens as shown in the below figure.

The table shows the list of devices deployed in the selected site of the user and their data consumption.
It shows the below information:
- Site – Name of the site.
- Device – Name of the device.
- WAN Link – WAN Links selected for the device.
- Quota Start – Start date and time of the quota.
- Quota Period – Time period of the quota.
- Usage – Breakdown of data usage. The color codes for different levels of data usage are explained below. Refer Figure Color Codes for Usage.
  - Remaining – The amount of data remaining in the quota.
  - Normal – The amount of data consumed by the user.
  - Over Quota Threshold – The amount of data consumed after reaching the threshold amount.
  - Over Max Quota - The amount of data consumed after reaching the maximum quota limit.

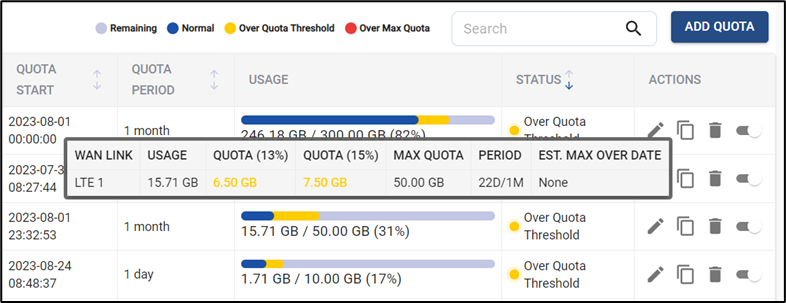

  - Hover the cursor on the progress bar to open the pop-up that shows additional information explained below. Refer Figure Usage Column Pop-up.
    - WAN Link – The WAN Links selected for the device.
    - Usage – Amount of data consumed.
    - Quota percentages – The different thresholds limits set for the Quota.
    - Max Quota – The maximum amount data allocated for the Quota.
    - Period – The number of days elapsed / Total number of days for the quota.
    - Est. Max Over Date – The estimated date by which the Quota data would get completely used up.
- Status – Status of data usage.
- Actions:
  - Edit - Click Pencil icon to edit the quota.
  - Copy – Click Copy icon to copy the quota.
  - Delete – Click Delete icon to delete the quota.
  - Enable/Disable – Click Toggle button to enable or disable the Quota. When a quota is disabled, all the actions that are configured to happen will not be executed. Only when the quota is enabled again, the actions will get executed.
The Search field can be used to search for the device based on the Site Name/Device Name/WAN Link.

Add Quota

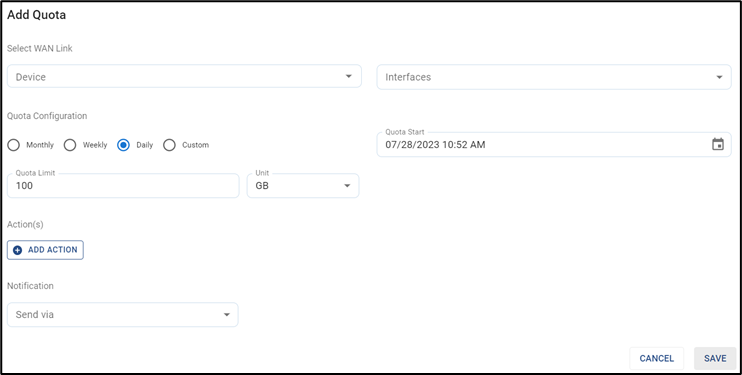

Click Add Quota to create a new Quota. The Add Quota dialog box opens.

In the Device field, select the required device from the dropdown menu. The device list in the dropdown will be shown according to the selected site.

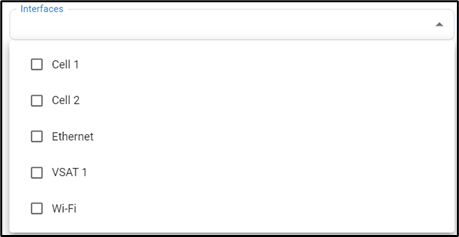

In the Interfaces field, select the required Interfaces from the dropdown menu. The Interface list in the dropdown will be shown according to the selected device.

Select the Quota Configuration. The user can select any option between Monthly/Weekly/Daily/Custom.
- If the user selects Custom, enter the Quota Period.
- Select the Unit from the dropdown menu.
Enter the Quota Start date and time from the date picker and clock.
Enter the Quota Limit.
Select the Unit from the dropdown menu. The user can select any option between MB/GB/TB.

Actions

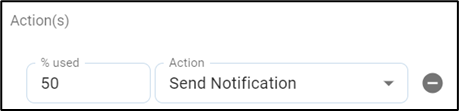

Click + Add Action to specify the actions to be done when the data usage reaches a specific percentage of total quota.
In the % used field, enter the target percentage at which the action should be done.
There are four types of actions that the user can configure.

Send Notification

The user can configure to send a notification about the data usage when the data usage reaches a specific percentage of the total quota.
In the Action field, select Send Notification from the dropdown menu.

In the Notification field, select the checkbox of medium to send the notification. The options available are Email and Microsoft Teams.
In the Send To (Via Email) field, select the Email address from the dropdown menu or enter a new email address.
Click Save.
Now when the usage reaches the given percentage, a notification will be sent to the given Email address and the Teams channel stating details about the data consumption.

Assign WAN Profile

The user can configure to assign particular WAN Profiles to the network when the data usage reaches a specific percentage of the total quota. The new WAN profiles can have different priorities for the WAN Interfaces.
In the Action field, select Assign WAN Profile from the dropdown menu.

In the WAN Profile field, select the required WAN Profile from the dropdown menu.
These new WAN profiles have to be set up in the Edge Portal.
In the Access Networks field, Select the Access Networks from the dropdown menu.
Click Save.
Now when the usage reaches the given percentage, the new WAN Profile will be applied to the network and a notification will be sent to the user.

Assign Traffic Policy

The user can configure to assign particular Traffic Policies to the network when the data usage reaches a specific percentage of the total quota.
In the Action field, select Assign Traffic Policy from the dropdown menu.

In the Traffic Policy field, select the required Traffic Policy from the dropdown menu.
These new Traffic Policies have to be set up in the Edge Portal.
In the Access Networks field, Select the Access Networks from the dropdown menu.
Click Save.
Now when the usage reaches the given percentage, the new Traffic Policies will be applied to the network and a notification will be sent to the user.

Disable Interface

The user can also configure to disable specific interfaces or all interfaces when the data usage reaches a given percentage of the total quota.
In the Action field, select Disable Interfaces from the dropdown menu.

In the Interfaces field, select the required Interfaces from the dropdown menu. The Interface list in the dropdown will be shown according to the selected device.
Click Save.
Now when the usage reaches the given percentage, the internet connectivity will be disabled to the selected interfaces and a notification will be sent to the user.
Click Cancel icon to cancel.

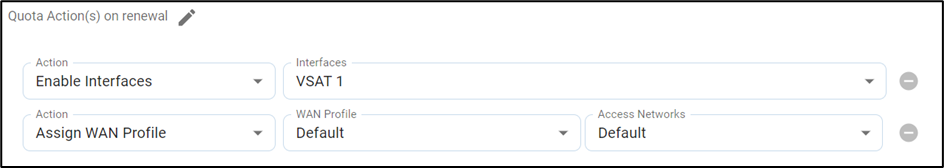

Quota Actions on Renewal

Using the Add Actions feature, different configurations can be applied to the quota when the user reaches different percentages of data usage. When the quota refreshes, the user might want to restore the initial configurations and start as new. The Quota Actions on renewal option can be used for that purpose.

Click the Pencil icon to enable editing.
Select the Action from the dropdown menu. There are three types of actions that the user can configure.

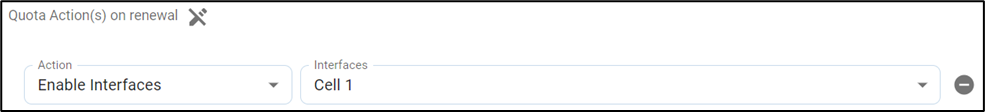

Enable Interfaces

The user can configure to enable specific interfaces or all interfaces when the quota.
In the Action field, select Enable Interfaces from the dropdown menu.

In the Interfaces field, select the required Interfaces from the dropdown menu. The Interface list in the dropdown will be shown according to the selected device.
Click Save.
Now when the quota refreshes, the internet connectivity will be restored to the selected interfaces and a notification will be sent to the user.

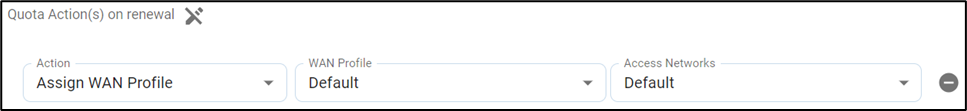

Assign WAN Profile

The user can configure to assign particular WAN Profiles to the network when the quota refreshes.
In the Action field, select Assign WAN Profile from the dropdown menu.

In the WAN Profile field, select the required WAN Profile from the dropdown menu.
In the Access Networks field, Select the Access Networks from the dropdown menu.
Click Save.
Now when the quota refreshes, the selected WAN Profile will be applied to the network and a notification will be sent to the user.

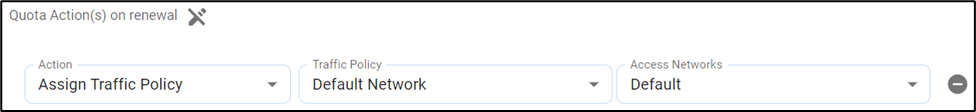

Assign Traffic Policy

The user can configure to assign particular Traffic Policies to the network when the quota refreshes.
In the Action field, select Assign Traffic Policy from the dropdown menu.

In the Traffic Policy field, select the required Traffic Policy from the dropdown menu.
In the Access Networks field, Select the Access Networks from the dropdown menu.
Click Save.
Now when quota refreshes, the selected Traffic Policies will be applied to the network and a notification will be sent to the user.

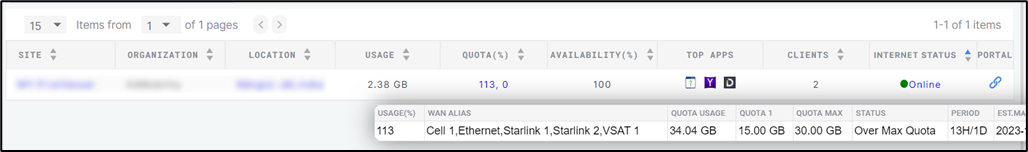

Viewing Quota Details from Dashboard

The users can view the status of the quota from the Dashboard directly.
Hover the cursor on the values given in the Quota column from the Dashboard. A pop-up opens to show additional information such as:
- Usage % – Percentage of data consumed from the total Quota.
- WAN Alias – The WAN Alias selected for the device.
- Quota Usage – Amount of data used up.
- Quota 1 – The different thresholds limits set for the Quota.
- Quota Max – The maximum amount data allocated for the Quota.
- Status – Status of data usage.
- Period – The number of days elapsed / Total number of days for the quota.
- Est. Max Over Date – The estimated date by which the Quota data would get completely used up.
