Portal

The Portal tab allows the admin to set the Login page title, sub title, Background Image, enable/disable Self Signup, upload Terms & conditions, setup the Self Sign up configurations and create Planset for Paywall enabled users.

• Select the Portal tab from the Captive Access Network Homepage.

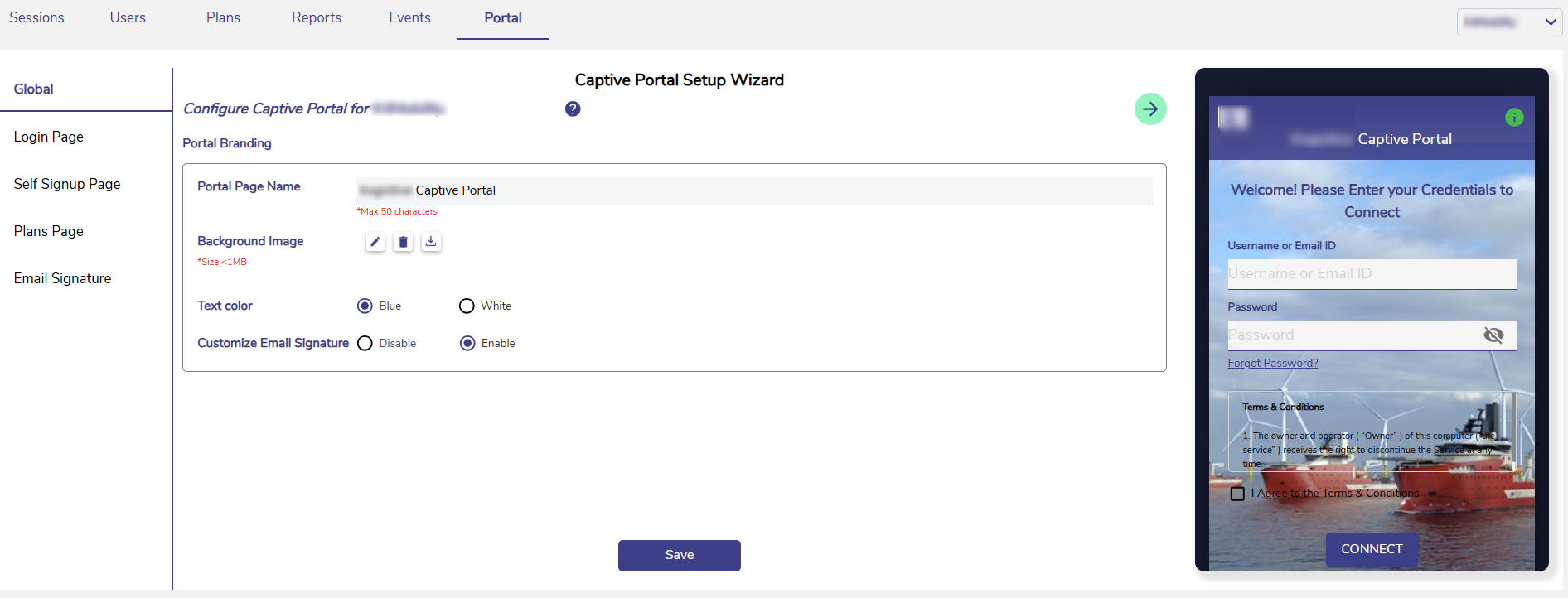

Global

• The Global tab is selected by default.

• Enter the Portal Page Name. This is the title of the Login page of the User Portal.

• The admin can view the preview of the setup in real-time in the right panel.

• Click the Upload icon to upload a background picture for the User Portal.

• In the Text Color field, select any option between Blue / White to set the color of the fields in the Login page of the User Portal.

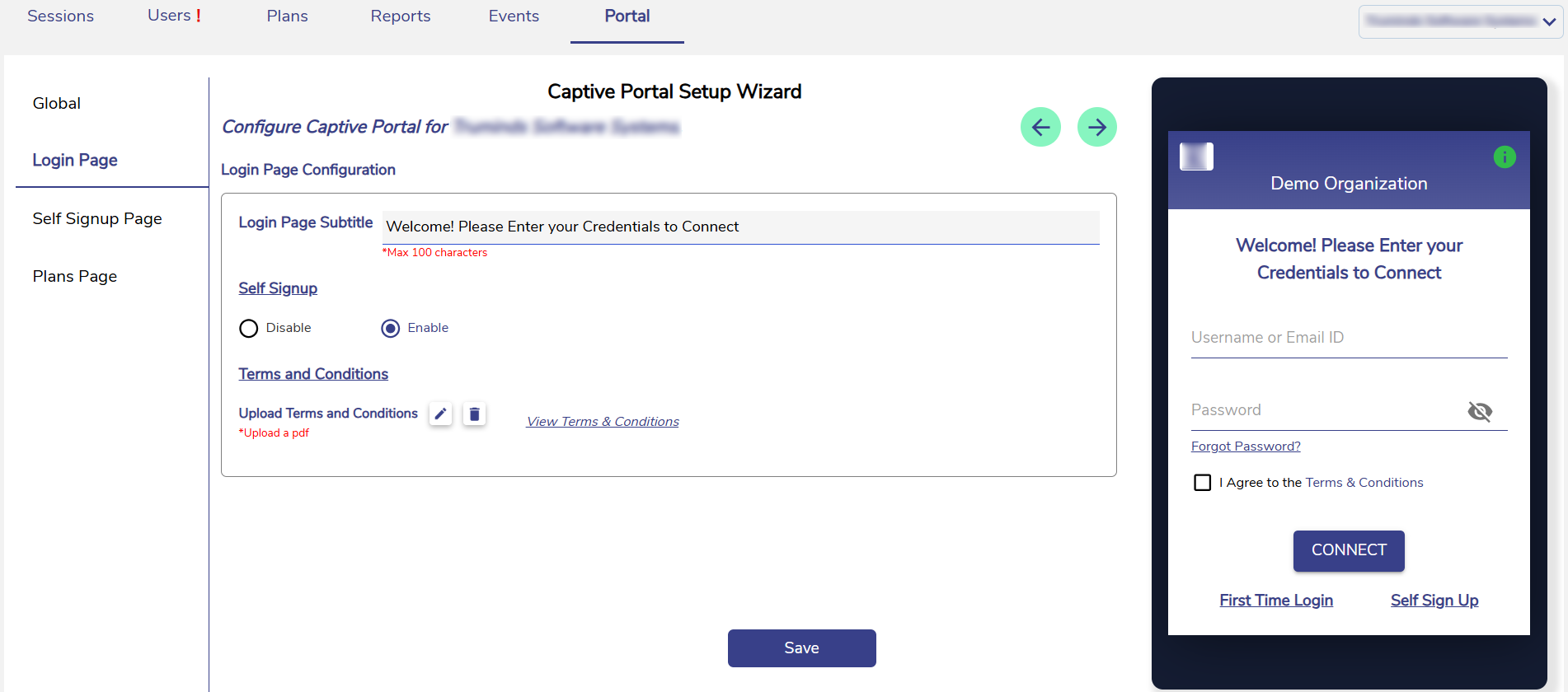

Login Page

• Click the Login Page option from the side bar or click the icon to move to the Login Page configurations.

• Enter the Login Page Subtitle. This is the welcome message displayed to the user in the login screen.

• In the Self Signup field, click the Enable radio button to enable Self Signup feature for the Organization. Click the Disable radio button to disable Self Signup feature.

• In the Terms and Conditions field, select the icon to upload the terms and conditions pdf. The user will have the option to view these terms and conditions when they login.

• Click the View Terms & Conditions button to view the terms and conditions pdf.

• Select the icon to remove the uploaded terms and conditions pdf.

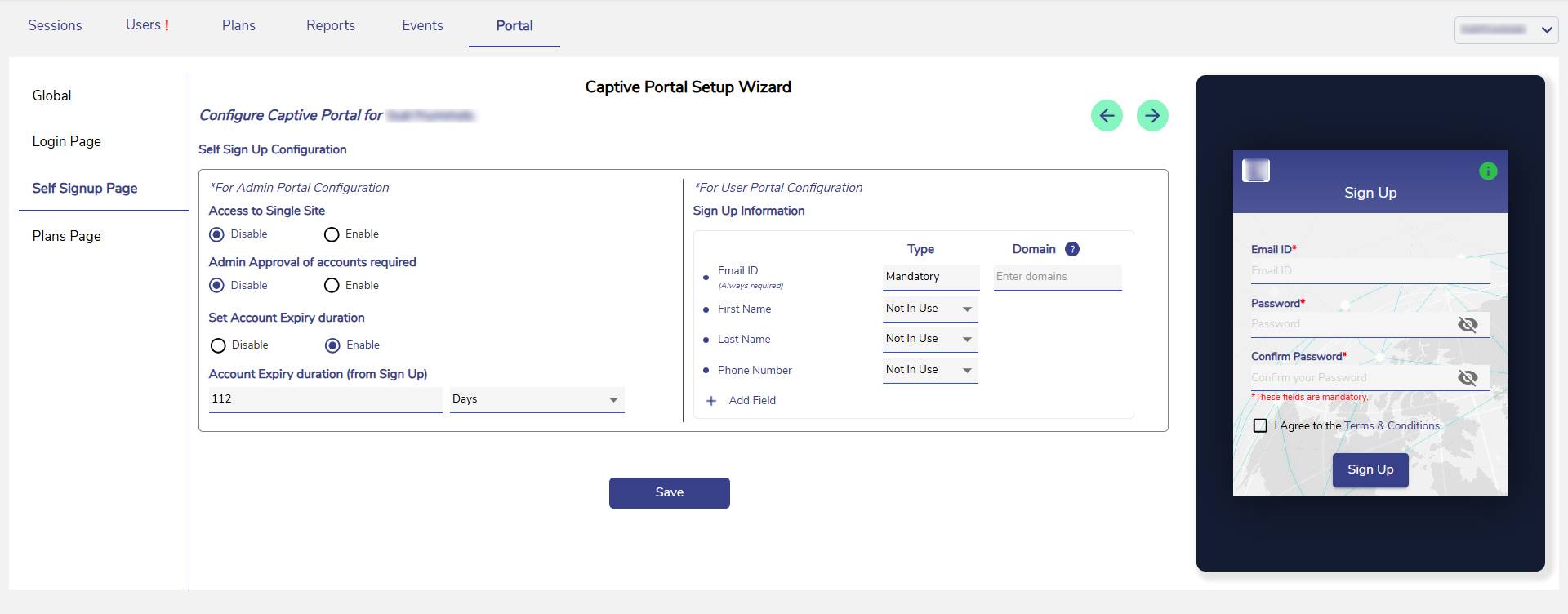

Self Signup Page

• The users can sign up and create their own accounts by themselves using the Self Sign Up function. Self Sign Up details should be configured in the Admin Portal in order for the user to perform self sign up from the User Portal.

• Click the Self Signup Page option from the side bar or click the icon to move to the Self Signup configurations. The configurations setup in this screen will be applicable for all the self sign up users to be created under that organization.

• Access To Single Site? - Select Enable to configure only single site access for the self signed up users. Select Disable to allow the self signed up users access all the sites. The Admin can change the accessible sites anytime by editing the user access.

• Admin Approval of accounts required? - Select Enable in this field to restrict the signed up users from accessing internet without admin approval. Only when the admin approves, they can login and access internet. Select Disable to allow the user to sign up and access internet without admin’s approval.

• Set Account Expiry Duration? – Select Enable to set an account expiry duration. Enter the duration in Account Expiry Duration field. Select the unit from the dropdown menu as Days/Weeks/Months. By default, the account expiry duration is set to 7 days. This field will be disabled if no expiry on user account is chosen.

• Admin can choose to either provide an account expiry or disable the account expiry on the self signed up user account.

• Under the Sign Up Information section Email ID, First Name, Last Name, Phone Number are provided by default. If the Type of the Email Address is chosen as either Mandatory or Optional, admin can enter the domain field.

• Enter the required Domain values in the Domain field. This field is optional. Comma separated values provided in the Domain field are used to validate the email address entered by the user during the Self Sign Up of the user. The email address entered by the user will be considered valid only if it includes the value entered in the domain field.

• Click Add Field button to add any more fields. For example, Passport Number.

• Select the Type for that field from the dropdown menu. The type of these fields can be either Mandatory, Optional or Not In Use.

  • Select Mandatory to make that field mandatory during user sign up.

  • Select Optional to make it an optional field.

  • Select Not In Use to not populate that field during user sign up.

• Click Save button to save the Self Sign Up configuration. The saved configuration takes into effect immediately with the subsequent Self Signed Up users. Previously created user accounts will not be affected.

Plans Page

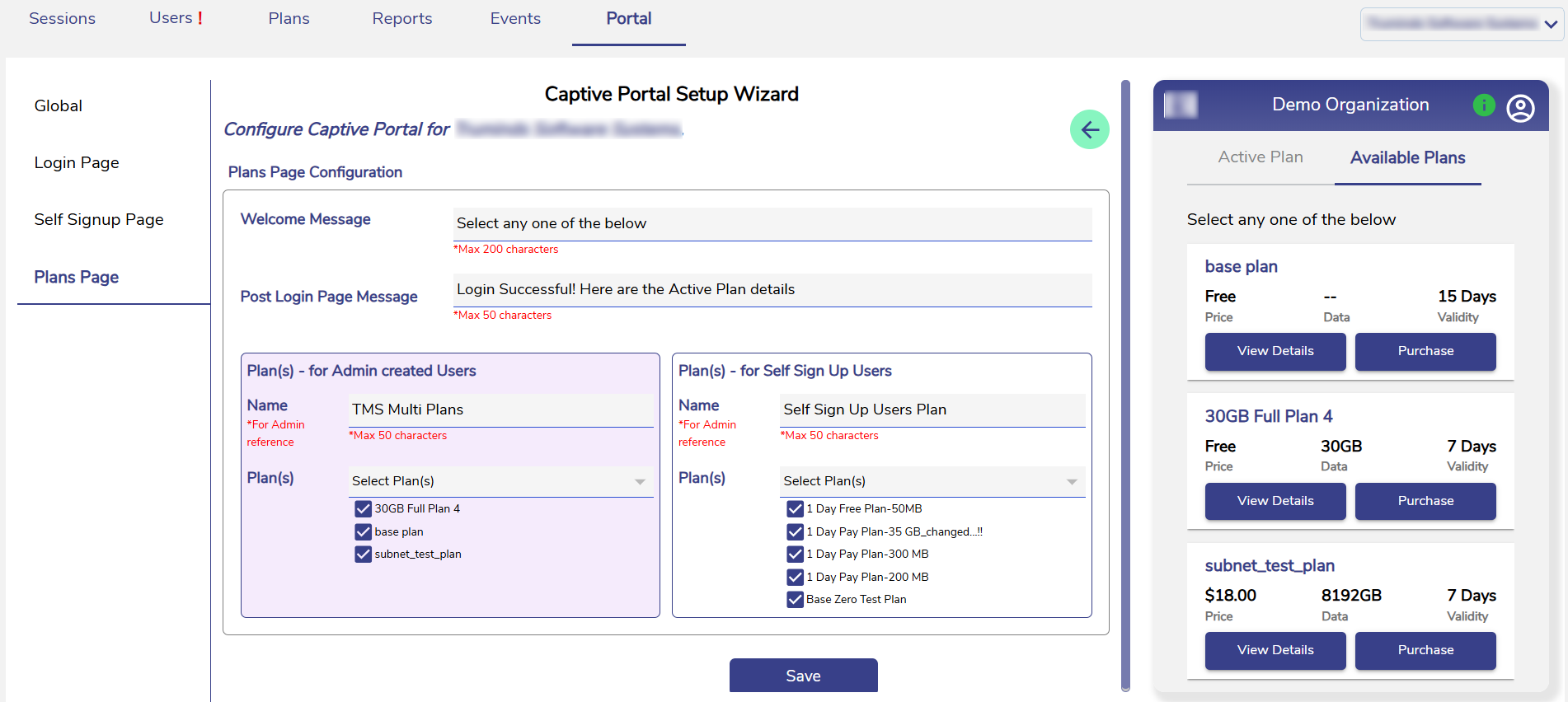

Paywall Enabled Accounts

• Click the Plans Page option from the side bar or click the icon to move to the Plans configurations.

• Set the Welcome Message. The welcome message will be displayed in the Available Plans tab for the Paywall enabled organizations.

• Set the Post Login Page Message. This message will be displayed when the user successfully logs in into his account. The admin can view the preview of the setup in real-time in the right panel.

• The Plan(s) - for Admin created Users section is used to create the Planset that can be associated with the Admin Created Users. This feature can only be used by Paywall enabled organizations. Planset enables the user to buy the plan according to their need. Once a Planset is created, this can be associated with the user when creating the user in the Users tab.

• When multiple plans are selected, all the selected plans will be shown to the user while logging in and the user can buy the plan of their choice.

• Enter a Name for the Planset.

• In the Plan(s) field, select the plans that should be displayed to the user as their options. Only the plans configured as Payable plans will be allowed to be added in the Planset.

• The Plan(s) - for Self Sign Up Users section is used to create the Planset that will be associated with the Self Sign Up Users. This feature can only be used by Paywall enabled organizations. Planset enables the self sign up user to buy the plan according to their need. Once a Planset is created, this will be associated with all the self sign up users automatically when they sign up.

• In the Plan(s) field, tick the checkboxes of the plans that should be displayed to the self signed up user as their options to buy. Only the plans configured as Payable plans will be available in the dropdown menu.

• When multiple plans are selected, all the selected plans will be shown to the user while logging in and the user can buy the plan of their choice.

• Click the Save button to save the configurations.

Non-Paywall Accounts

• Click the Plans Page option from the side bar or click the icon to move to the Plans configurations.

• Set the Post Login Page Message. This message will be displayed when the user successfully logs in into his account. The admin can view the preview of the setup in real-time in the right panel.

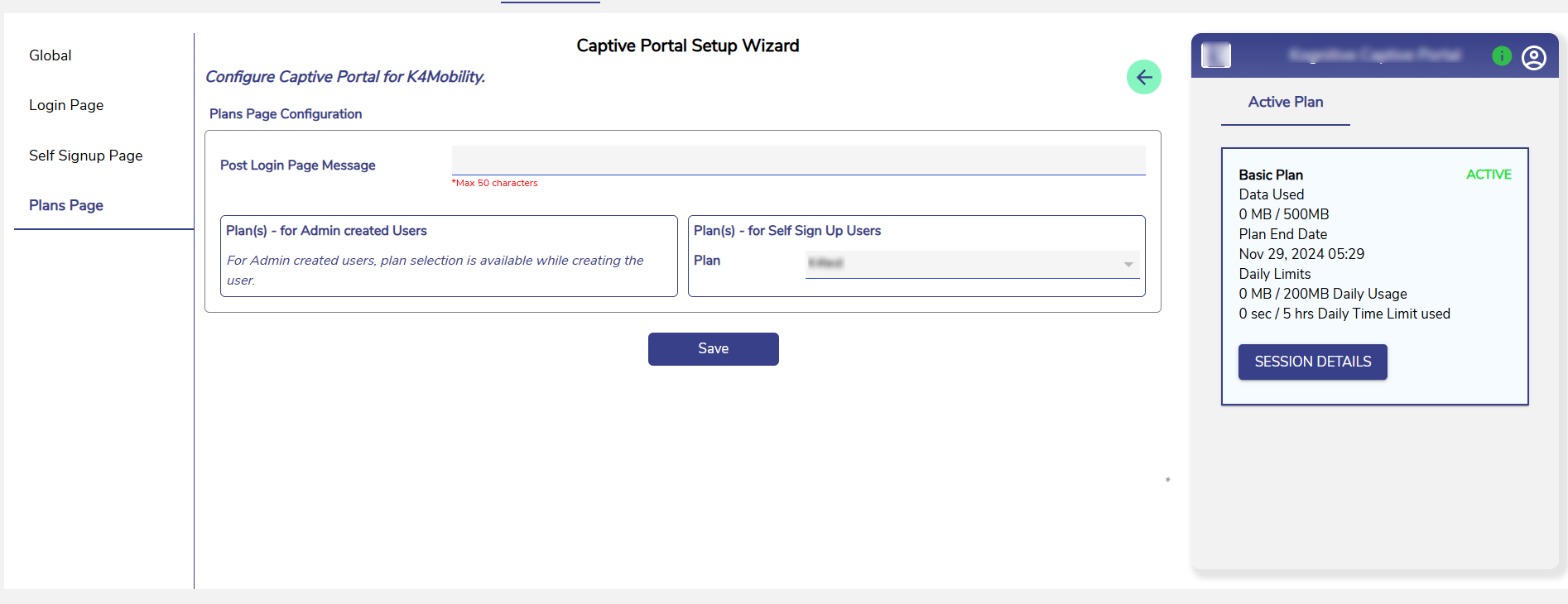

• The below screenshot shows the Plans page UI for non-paywall accounts. These suers will not have the ability to create Planset and users will not be allowed to buy plans of their choice when they login.

• For Admin created users - Plans will be associated with them when the user account is created by the admin.

• For Self sign up users - Under the Plan(s) - for Self Sign Up Users section, select the plan that has to be associated with all self sign up users in the Plan field from the drop down menu.
