EdgeFit - Application Examples

The figure below shows a common configuration of EdgeFit using: Starlink, an Ethernet Cellular Gateway, a USB-C Ascent Modem, and an ethernet LAN switch.

EdgeFit Example with Starlink and 5G

EdgeFit and Starlink, with USB Ethernet WAN Expansion

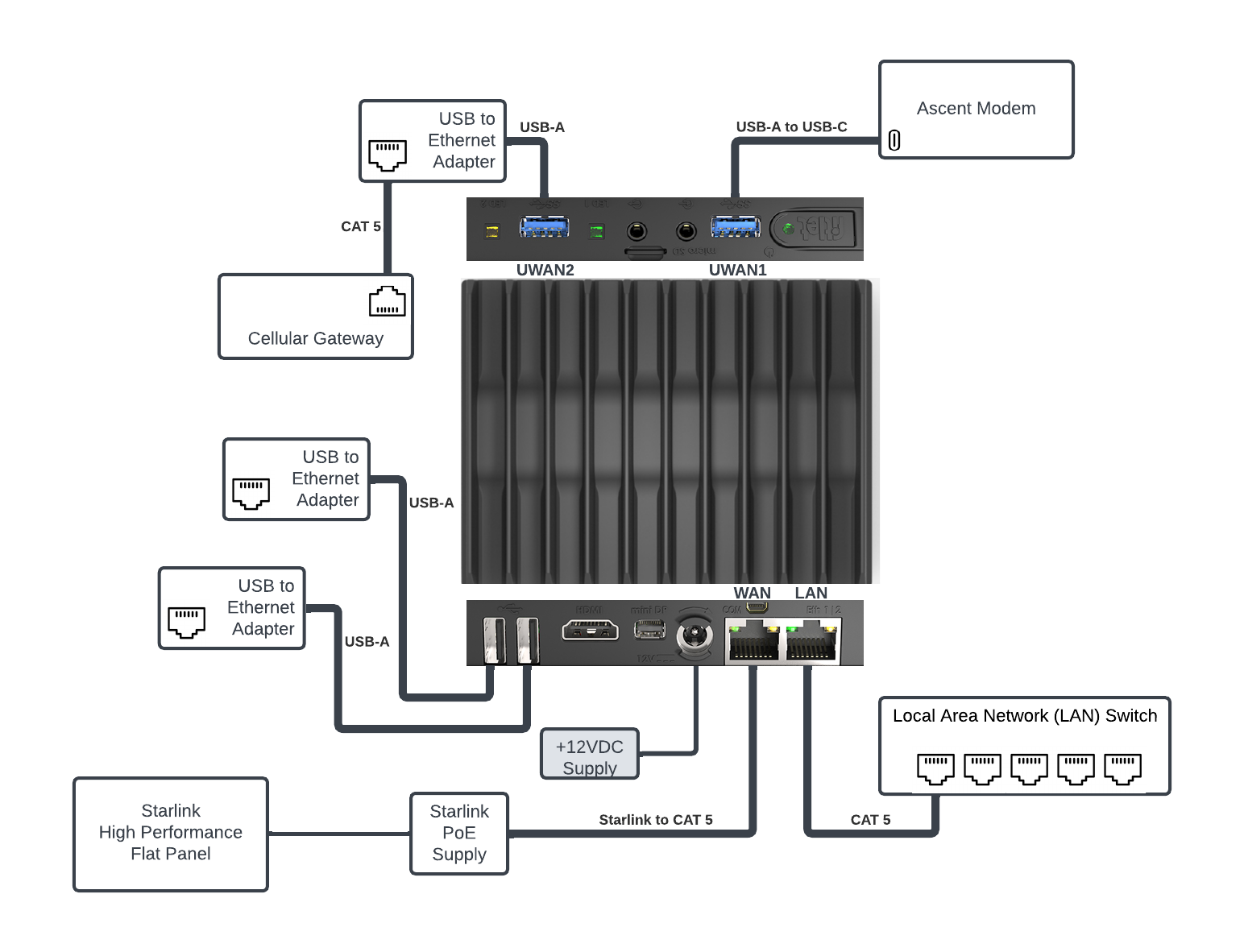

The figure below shows a common configuration of EdgeFit using: Starlink, an Ethernet Cellular Gateway through a USB to Ethernet expansion dongle, a USB-C Ascent Modem, an ethernet LAN switch, and two USB to Ethernet dongles for additional WAN sources.

EdgeFit Example using Ethernet Adapters for WAN expansion

EdgeFit SD-WAN for Multi-Orbit VSAT with 5G

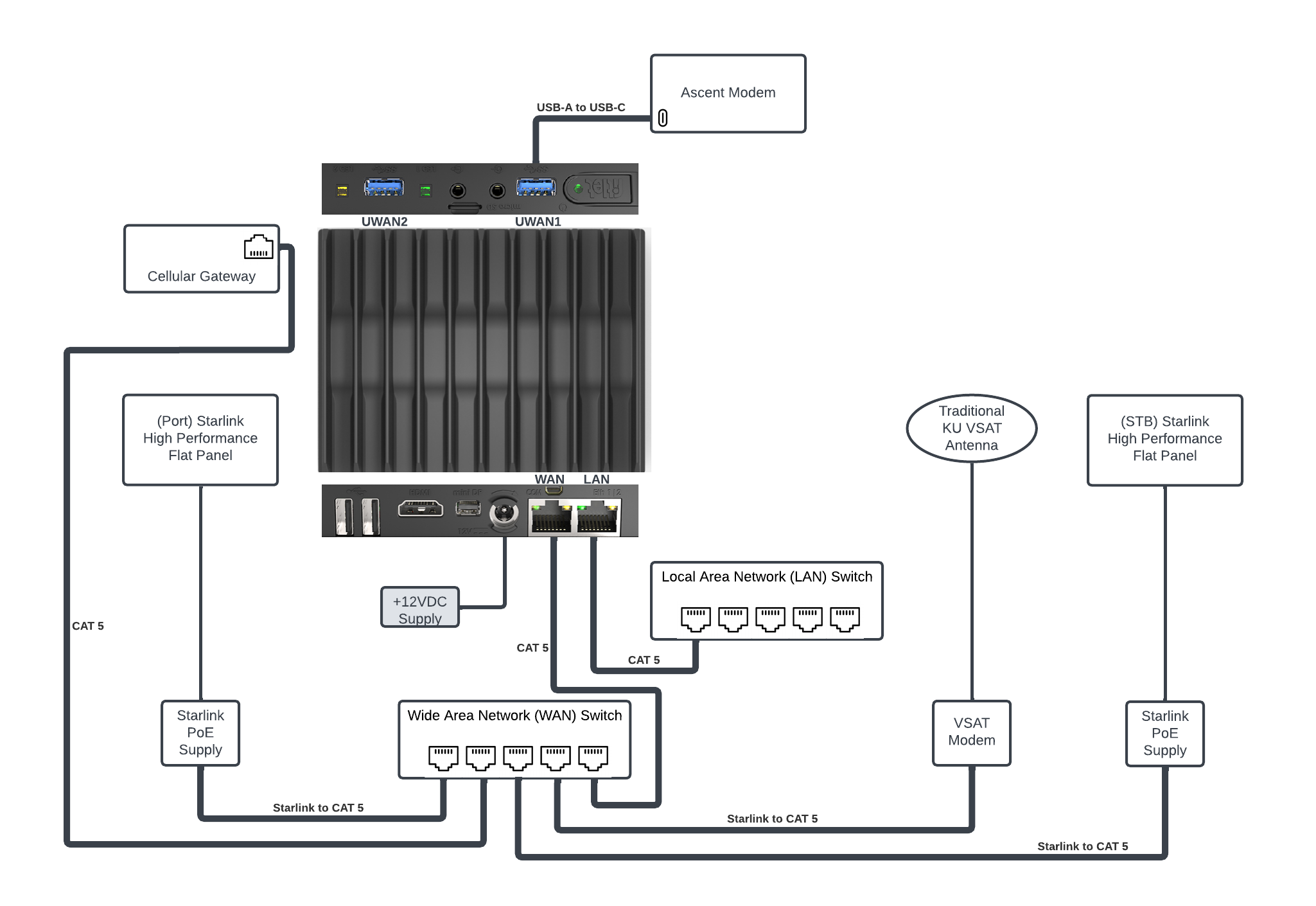

The figure below shows a common configuration of EdgeFit using: An ethernet LAN switch, a USB-C Ascent Modem 5G, and a 5-port ethernet switch for WAN selection of: Dual Starlink Terminals, a KU VSAT Terminal, and an Ethernet Cellular Gateway.

EdgeFit Example with Dual Starlink, VSAT, and Dual 5G Modems
