EdgePro - Hardware Description
Enterprise Internet and LAN Management System
The EdgePro runs EdgeOS as part of the Kognitive Edge platform. It can be managed directly, or seamlessly through the Kognitive Cloud web portal and the Edge Mobile App.
The EdgePro supports an array of services efficiently and effectively, reducing complexity and simplifying installations. The Kognitive Edge platforms consists of software, applications, cloud systems, and advanced analytics choose the best network for the location and conditions while providing users the tools to customize their system for the best user experience.
![image-20240202-140719.png](../__attachments/1805910166/image-20240202-140719.png?inst-v=113b1a36-52f9-4344-a825-138b5322243c)

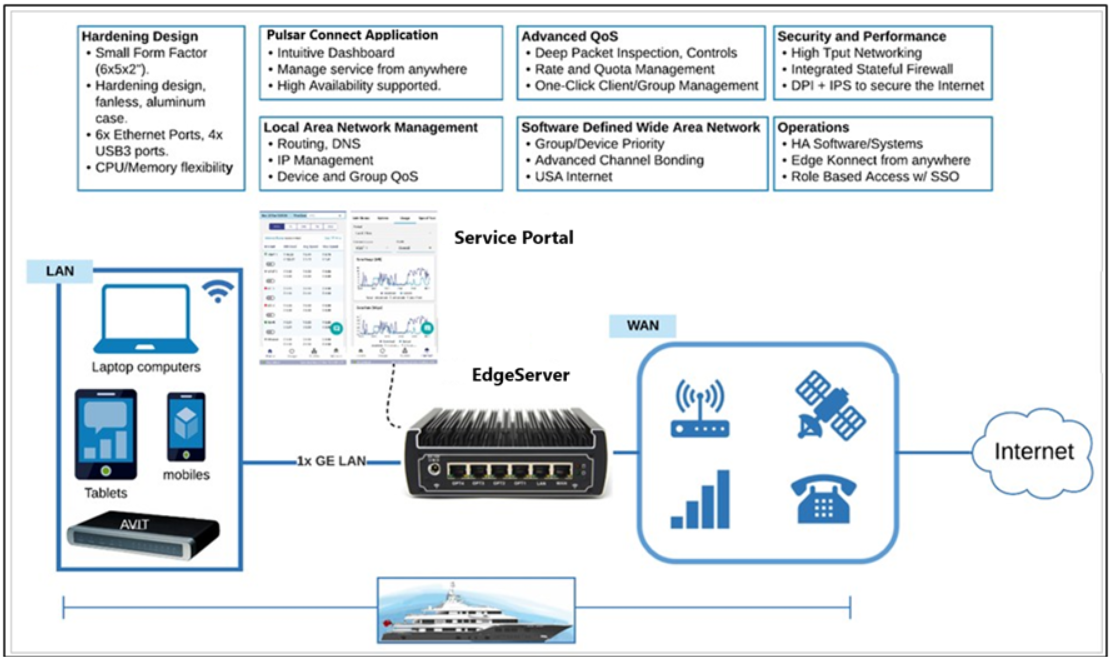

Figure 1.1 Configuration of Equipment
EdgePro Physical Design
The EdgePro is a Small Form Factor (SFF) industrial-grade server that hosts an Intel multi-core CPU running the EdgeOS software. The following figures show the primary interfaces and connections of the EdgePro system.
![](../__attachments/1805910166/image-20230920-162526.png?inst-v=113b1a36-52f9-4344-a825-138b5322243c)

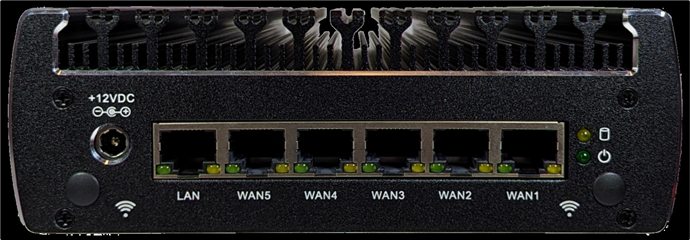

Rear View of EdgeOS System
A DC input (+12VDC), power/disk LED, and flexible LAN/WAN RJ45 ports are available on the back panel.
![K4_EdgeServer2_front_clean_1.png](../__attachments/1805910166/K4_EdgeServer2_front_clean_1.png?inst-v=113b1a36-52f9-4344-a825-138b5322243c)

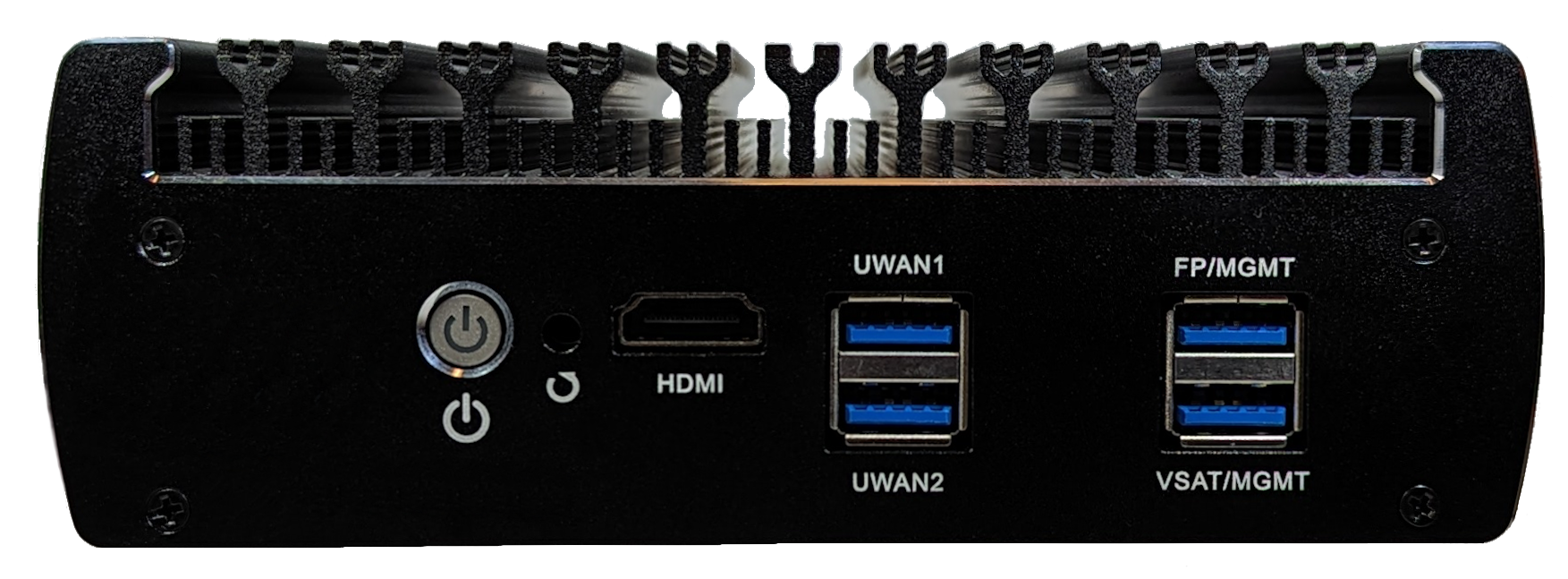

Front View of EdgeOS System
The power button, HDMI, 4x USB 3.0 connections are on the front panel. The USB 3.0 ports provide system management as well as additional WAN/LAN ports by using an adapter or appropriate USB WAN device, like a 5G modem.
For details of the external interfaces and primary limits or technical specifications, refer the below table.
External Interfaces | Primary Limit or Specification |
WAN Management | Supports up to 12x WAN Sources. |
Ethernet | 6x GE ports, additional 4x GE ports using USB expansion. |
Network Configurability | Up to 500 Clients, 30 VLAN Networks; Stateful Firewall. |
Compute Power | Intel i3 Dual Core 7020 at 2.3 GHz; 8 GB RAM, 128 GB Storage. |
Expansion | 4x USB 3.0 ports - GE or 10GE ethernet; 5G modem adapter supported. |
Cooling | Passive, Fanless – Silent. |
Mounting | Standalone / VESA / Rack mount kit available. |
Power | +12VDC (50W Max); 100-240 VAC, 50-60 Hz (AC/DC Power Supply Included) |
Physical | 6.1” x 5” x 2.1” / 15.5 x 12.7 x 5.3 cm - 2.25 lbs / 1 kg |
Environmental | Operating temperature: -10 to +50 C; Humidity up to 95%, non-condensing. |
Warranty | 1 Year limited. |
EdgePro Technical Specifications
