Performance Chart

The Performance Charts screen provides comprehensive time chart functionality to plot Data Rate metrics over selectable time periods for any given Interface or Service. Once the Hub System is configured, user can monitor the performance of the Interface or Services configured in the system.

Viewing Performance Charts

To view the performance charts, perform the following steps.

Steps

Log on to the Hub System. The home page appears.
Click the Menu icon. The menu options appear in the dropdown menu.

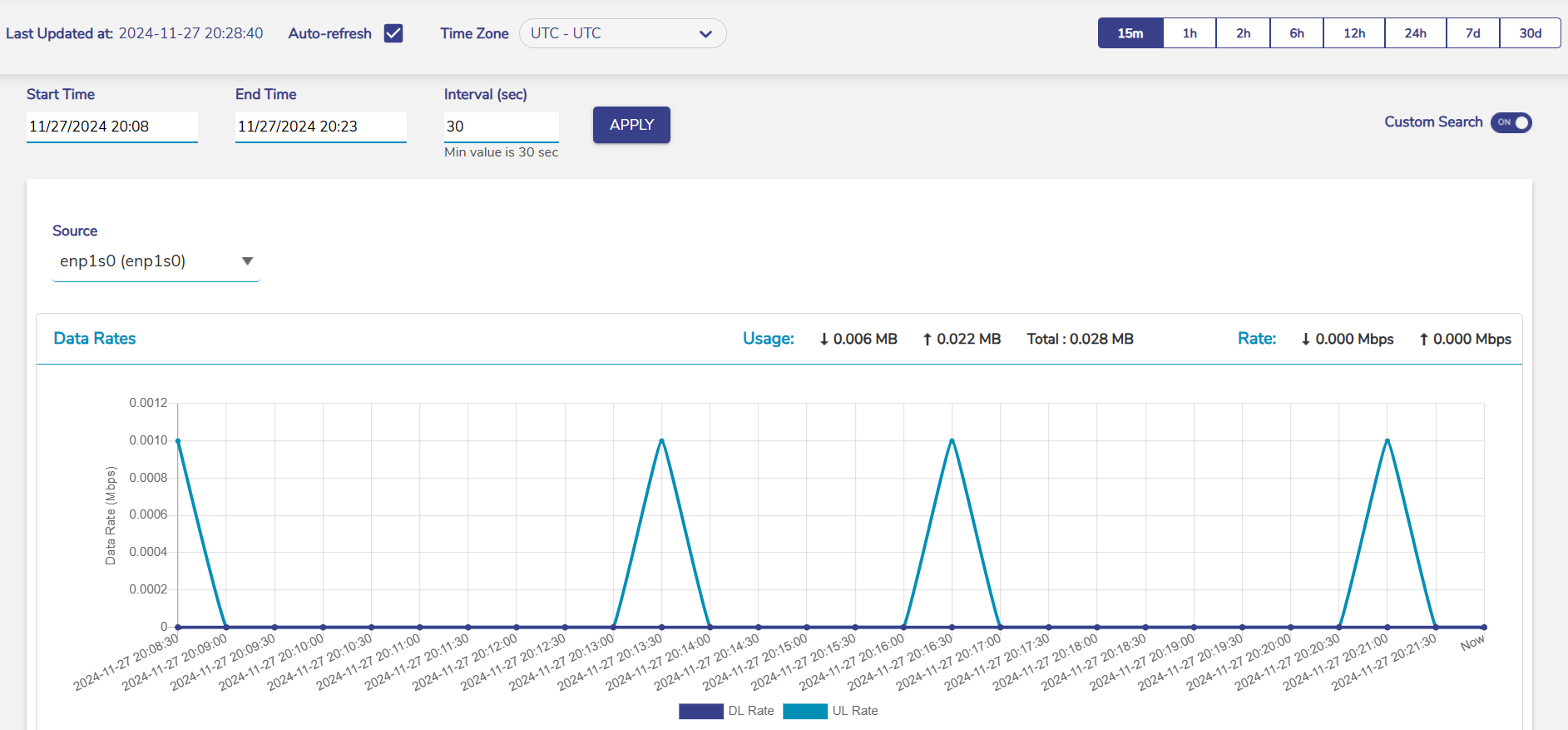

Click Performance Charts. The Performance Charts page appears. Refer the below figure.

Fields	Description	Configuration
Last Updated At	This shows the last timestamp at which this screen was updated.	N/A
Auto-refresh	Allows data on this page is to be refreshed automatically. Data is updated at an interval of 30 seconds.	To automatically refresh the details of the Interface or Service, select the Auto-refresh check box.
Time Zone	Allows selection of time zone to access the details on this screen based in that time zone.	By default, the UTC time zone is configured. Select the required Time zone in the Time Zone field.

Click the Custom Search toggle button. The Start Time, End Time, and Interval (sec) fields become available.
Select the Start Time and End Time.
In the Interval (sec) field, click the minimum interval specified.
In the Source field, select the Interface or Service for which the chart is to be plotted.
Click Apply button. The chart is generated as per the selected time period.
The performance of the selected Source (Interface/Service) based on the above metrics is shown in the form of a line chart. The horizontal axis contains the time instances, and the vertical axis contains the Data Range values in Mbps.
The graph between these two axes gives the user a clear understanding of how the Interface or Service has performed during the selected time interval.
The Legend provided below the Chart helps the user to differentiate between the Download Rate and Upload Rate lines in the chart.

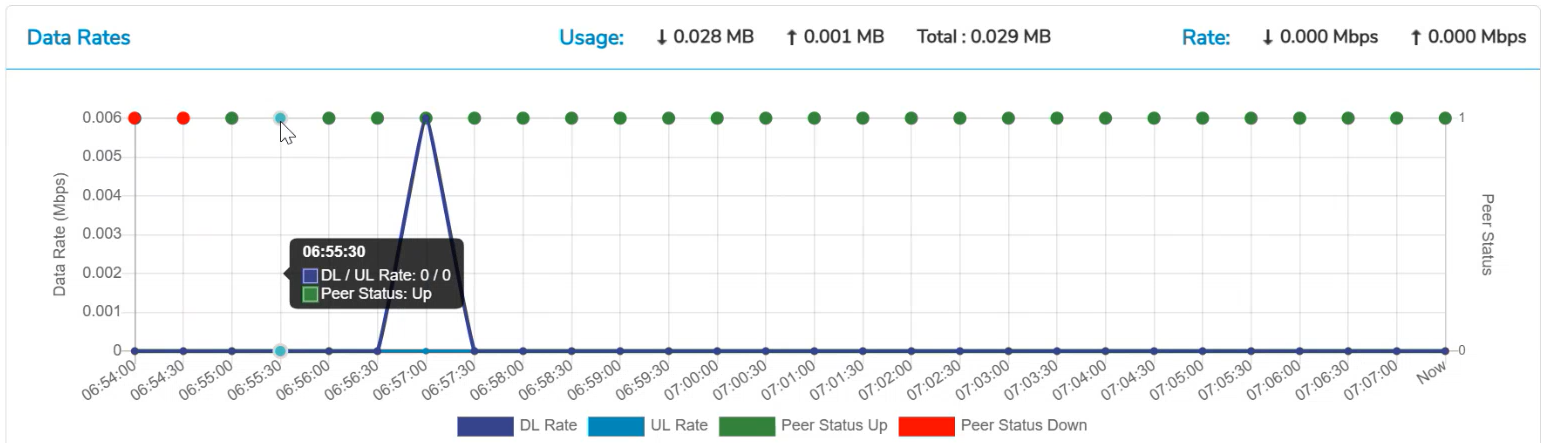

Peer Status - Shows the status of the Connection. Following options are possible.
- Up - Indicates that the WAN Interface is working and Internet access is available.
- Down - Indicates that the WAN Interface is not working and Internet access is not available.
- Hover the cursor on the dot to view the Upload & Download rate and the Peer Status.
