How To: Configure GEO iDirect Interface

Keywords: EdgeOS, GEO iDirect, VSAT Management

Configuring GEO iDirect Interface

The steps required to setup the GEO iDirect interface to show in VSAT Controller page are defined here and performed using flow of the Configuration Wizard.

  • Login into the EdgeOS Portal.

  • Click the three dots icon at the top right corner of the homepage.

  • Click Configuration Wizard.

Configuration Wizard

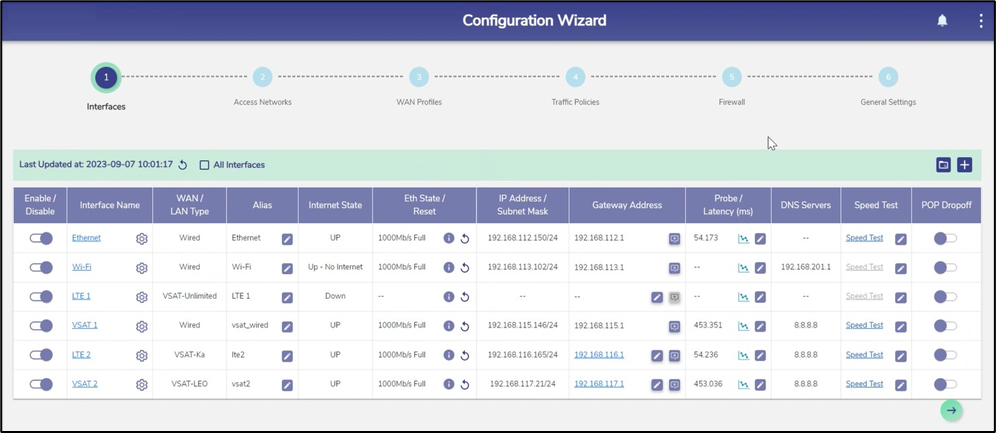

  • Click Interfaces.

  • Details of the Interfaces present on the EdgeOS System are listed on the Interfaces page. The user can view and update the configuration of the Interfaces present on the EdgeOS System.

  • By default, only enabled Interfaces are shown. To see all the interfaces, click the All Interfaces checkbox.

  • The user can also press on the refresh button Refresh to refresh the page and get the latest data. By default, this screen refreshes every 30 seconds.

  • Remove the WAN Interface to be updated from all WAN Profiles.

  • Click on the Toggle icon and disable the WAN Interface.

  • Click the Gear icon next to the Interface. The Interface dialog box opens.

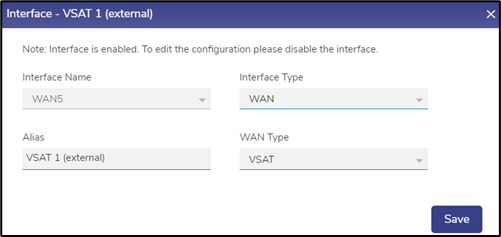

Update VSAT Interface

  • Check the Interface Name.

  • Select the Interface Type as WAN from the dropdown menu.

  • Select the WAN Type as VSAT from the drop down menu.

  • Enter the Alias Name for the Interface.

  • Click Save.

Gateway Address

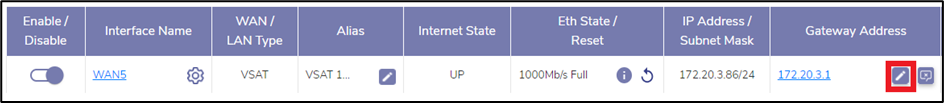

  • Click the Pencil icon under the Gateway Address column of the selected interface. The VSAT Type dialog box opens.

VSAT Type

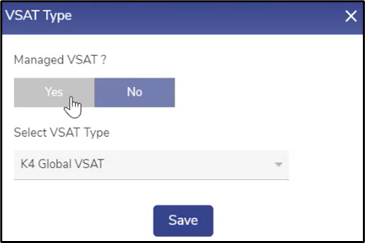

  • Click Yes under the Managed VSAT? field.

  • In the VSAT Type field, select one of the available options from the dropdown menu. The options available are given below:

    • Global VSAT - Non-Kognitive VSAT Provider Single Modem on VSAT1. With this option selected, VSAT controller will show up with all the available data. Beam Switch will not be supported with this configuration.

    • Kognitive Global VSAT - Modem1 (SES) on VSAT1

    • Kognitive HTS VSAT - Modem1 (Hispasat) on VSAT1

    • Kognitive HTS/Global VSAT - Modem1 (SES) & Modem2 (Hispasat) on VSAT1

    • Note: SES and Hispasat are running two different iDirect platform firmware, hence the need for two modems.

    • Kognitive Global VSAT - Multiple ISPs- Modem1 (SES/Intelsat) on VSAT1

    • Note: SES and Intelsat configurations are saved in the EdgeOS System, and appropriate configuration is loaded on the modem.

    • Kognitive HTS/Global Coverage - Multiple ISPs- Modem1 (SES/Intelsat) and Modem2 (Hispasat) on VSAT1.

  • Click Save.

Configuring VSAT Management Interface

  • Click on the Toggle icon and disable the VSAT/MGMT Interface.

  • Click the Gear icon next to the Interface. The Interface dialog box opens.

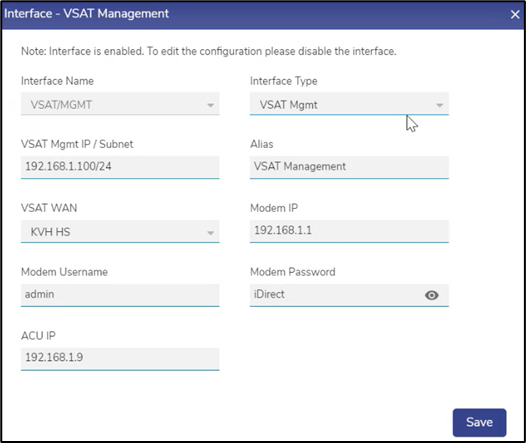

Update VSAT MGMT Interface

  • Check the Interface Name.

  • Select the Interface Type as VSAT Mgmt from the dropdown menu.

  • Enter the Alias Name for the Interface.

  • In the VSAT WAN field select the corresponding VSAT interface for which this interface acts as the management interface.

  • Enter the Username and Password of the iDirect Modem.

  • Click Save.

  • Click on the Toggle icon and enable the WAN Interface.

  • Now the data will be fetched and displayed in the VSAT Controller.
